18W1000
|
|
18W1000 |
|

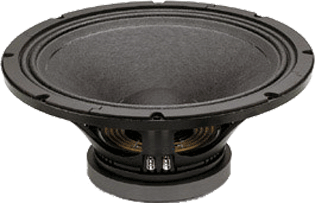

| 18" HIGH OUTPUT L.F. WOOFER |
|
HANDLES 2,000 WATTS W/ A 7.0MM XMAX FOR CLEAN TIGHT BASS! |
|
|
|
|
|
WOOFER MODEL |
18W1000 |
|
Specifications |
|
|
Diameter |
18" |
|
Impedance |
8
ohms |
|
|
7 ohms @ 4.0 khz |
| D.C. Resistance | 5.3 ohms |
|
AES
Power Rating |
1,000 Watts |
| Program Power | 2,000 Watts |
|
Sensitivity
(1W/1m) |
98dB SPL |
|
Frequency
Response |
37kHz
- 4.7kHz |
| Recommended Crossover | 500Hz |
| Voice Coil Diameter |
4"
/ 100mm |
| BL Factor | 24.7 TM |
| Recommended Enclosure Volume | 4.24-8.83 cu. ft / 120-250Liters |
| Magnet | Ferrite |
|
Mounting Information |
|
| Overall Diameter | 18.2" / 462mm |
| Bolt Circle Diameter | 17.24-17.32" / 438-440mm |
| Baffle Cutout Diameter | 16.38" / 416 |
| Overall Depth | 8.1" / 205.9mm |
| Flange Thickness | .75" / 19mm |
| Net Weight | 28.48 lbs. / 12.9 kg. |
| Shipping Weight | 32.23 lbs. / 14.6 kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 35 Hz |
| Impedance (Re) | 5.8 ohms |
| Coil Inductance (Le) | 2.45mH |
| Mechanical Q (Qms) | 7.1 |
| Electrical Factor(Qes) | .24 |
| Total Q (Qts) | .23 |
| Comp. Equivelant Vol. (Vas) | 10.55 ft3 / 268 Liters |
| Voice Coil Overhang (Xmax) | 7.0mm |
| Surface Area of Cone (Sd)m2 | 0.1134m2 |
