Eighteen Sound

ND1060

Eighteen Sound
1" HIGH FREQ. NEODYMIUM DRIVER

DELIVERS CLEAN CRISP VERY NATURAL HIGHS & WEIGHS ONLY 2.6LBS!

Eighteen Sound ND1060

ND1060

Item Price: $169.95

H.F. DRIVER

ND1060

Specifications

Throat Diameter

1" / 25.4mm

Impedance

8 ohms

Minimum Impedance

7 ohms @ 4.0 khz

D.C. Resistance 5.3 ohms
AES Power Rating 40 Watts above 1.6kHz
Program Power  80 Watts above 1.6kHz
Sensitivity (1W/1m) 108dB SPL

Frequency Response

1.6kHz - 20kHz

Recommended Crossover 1.6kHz or > @ 12dB/octave
Voice Coil Diameter 1.75" / 44.4mm
Flux Density 1.8T

Mounting Information

Overall Diameter 3.6" / 92mm
Overall Depth 2.1" / 53mm
Mounting 2 or 4 bolt-on type
Net Weight 2.6 lb. / 1.1 kg.

Materials

Diaphragm Polyster
Magnet Neodymium

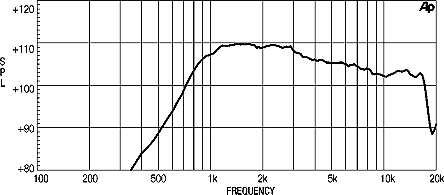

Frequency Response w/ XT1086 1" Horn
