FAITAL PRO 10FH520 - 10" HIGH POWER SPEAKER

THE FAITAL PRO 10FH520 HAS AN ALUMINUM DEMODULATION RING FOR A FLATTER LOWER DISTORTION MIDRANGE / MID-BASS SOUND!

Faital Pro 10FH520

8 Ohm Version

Item Price: $266.95

16 Ohm Version

Item Price: $266.95

WOOFER MODEL 10FH520

Specifications

Nominal Basket Diameter 10" / 250mm
Impedance 8 ohms
AES Power Rating 600 Watts
Program Power 1,200 Watts
Frequency Response 60Hz - 4.0kHz
Sensitivity (1W/1m) 97dB SPL
Voice Coil Diameter 3" / 77mm
Voice Coil Length 18.5 mm
Air Gap Height 12 mm
X Damage (peak to peak) 19.5 mm
BL Factor 18 N/A

Mounting Information

Overall Diameter 10.28" / 261mm
Bolt Circle Diameter 9.69" / 246mm
Baffle Cutout Diameter-Front Mount 9.13" / 232mm
No. Of Mounting Holes 8
Overall Depth 5.56" / 141.3mm
Flange & gasket Thickness 0.49" / 12.5mm
Net Weight 8.2 lb. / 3.7 kg.
Shipping Weight 9.5 lb. / 4.3 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Surround Shape Triple
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 60 Hz
Impedance (Re) 5.1 ohms
Coil Inductance (Le) 0.9 mH
Mechanical Q (Qms) 11.1
Electrical Factor (Qes) .3
Total Q (Qts) .29
Comp. Equivelant Vol. (Vas) 0.72 ft3 / 20.5 Liters
Voice Coil Overhang (Xmax) 7.25 mm
Surface Area of Cone (Sd)m2 0.0321m2
Reference Efficiency 1.44%
Diaphragm Mass (Mms) 50.3 Grams
Mechanical Compliance (Cms) .14 mm/N
Mechanical Resistance (Rms) 1.7 Kg/s

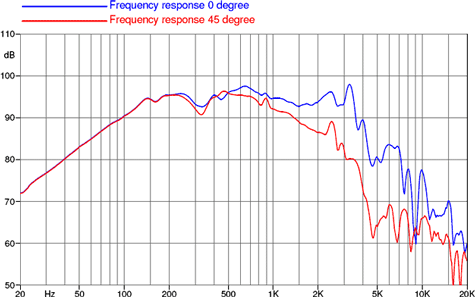

Frequency Response

Faital Pro 10FH520 Frequency

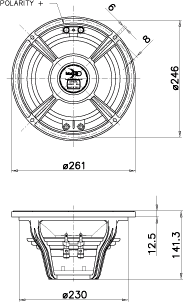

Mounting Dimensions

Faital Pro 10FH520 Drawing
