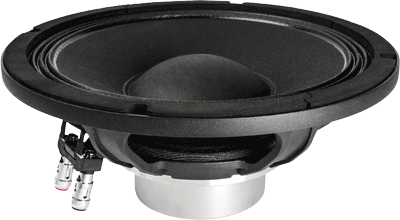

FAITAL PRO 10PR320 - 10" SPEAKER

THE FAITAL PRO 10PR320 IS A NICE BASS GUITAR SPEAKER THAT HAS SMOOTH CLEAN MIDS & TIGHT BASS WITH 300 WATTS AES POWER HANDLING!

8 Ohms

Item Price: $227.95

WOOFER MODEL 10PR320

Specifications

Nominal Basket Diameter 10" / 250mm
Impedance 8 ohms
AES Power Rating 300 Watts
Program Power 600 Watts
Frequency Response 50Hz - 4.0kHz
Sensitivity (1W/1m) 96dB SPL
Voice Coil Diameter 2.56" / 65mm
Winding Depth .69" / 17.4 mm
Magnetic Gap Depth  .31" / 8.0mm
X Damage (peak to peak) 17 mm
Flux Density 1.2 T
BL Factor 13.5 N/A

Mounting Information

Overall Diameter 10.28" / 261mm
Bolt Circle Diameter 9.69" / 246mm
Baffle Cutout Diameter-Front Mount 9.06" / 230mm
No. Of Mounting Holes 8
Overall Depth 4.33" / 110mm
Flange & gasket Thickness 0.47" / 12mm
Net Weight 5.6 lb. / 2.55 kg.
Shipping Weight 6.8 lb. / 3.1 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 48 Hz
Impedance (Re) 5.3 ohms
Coil Inductance (Le) 0.57 mH
Mechanical Q (Qms) 4.6
Electrical Factor (Qes) .31
Total Q (Qts) .29
Comp. Equivelant Vol. (Vas) 1.62 ft3 / 45.9 Liters
Voice Coil Overhang (Xmax) 7.37 mm
Surface Area of Cone (Sd)m2 0.0321m2
Reference Efficiency 1.6%
Diaphragm Mass (Mms) 35 Grams
Mechanical Compliance (Cms) .31 mm/N
Mechanical Resistance (Rms) 2.31kg/s

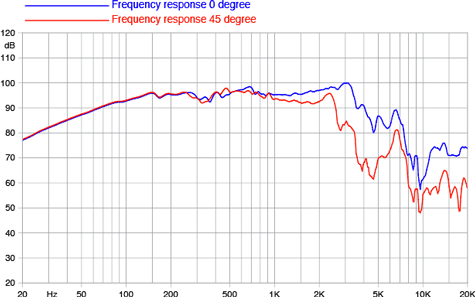

Frequency Response

 Faital Pro 10PR320 Frequency

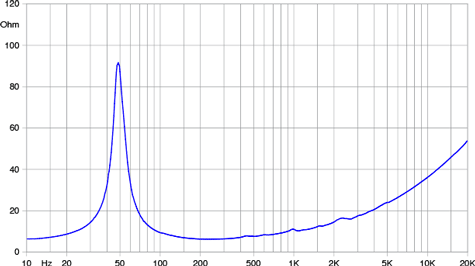

Free Air Impedance Curve
Faital Pro 10PR320 Impedance

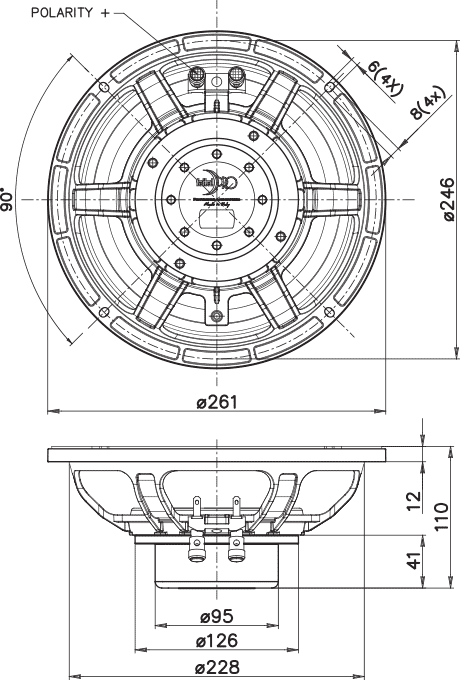

Mounting Dimensions

Faital Pro 10PR320 Dimensions
