FAITAL PRO 10PR330 - 10" SPEAKER

THE 10PR330 IS A NICE BASS GUITAR SPEAKER THAT HAS SMOOTH CLEAN MIDS & STRONG TIGHT BASS WITH 300 WATTS AES POWER HANDLING!

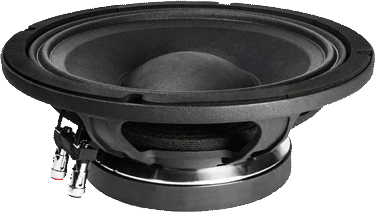

Faital Pro 10PR330

Item Price: $188.95

WOOFER MODEL 10PR330

Specifications

Nominal Basket Diameter 10" / 250mm
Impedance 8 ohms
AES Power Rating 300 Watts
Program Power 600 Watts
Frequency Response 60Hz - 3.15kHz
Sensitivity (1W/1m) 96dB SPL
Voice Coil Diameter 2.56" / 65mm
Voice Coil Length 17.4 mm
Air Gap Height 8.0 mm
X Damage (peak to peak) 15.25 mm
BL Factor 14.3 N/A

Mounting Information

Overall Diameter 10.28" / 261mm
Bolt Circle Diameter 9.69" / 246mm
Baffle Cutout Diameter-Front Mount 9.06" / 230mm
No. Of Mounting Holes 8
Overall Depth 4.37" / 111mm
Flange & gasket Thickness 0.47" / 12mm
Net Weight 9.0 lb. / 4.1 kg.
Shipping Weight 10.4 lb. / 4.7 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Surround Shape M-Roll
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 60 Hz
Impedance (Re) 5.3 ohms
Coil Inductance (Le) 0.64 mH
Mechanical Q (Qms) 4.6
Electrical Factor (Qes) .36
Total Q (Qts) .33
Comp. Equivelant Vol. (Vas) 1.0 ft3 / 28.3 Liters
Voice Coil Overhang (Xmax) 7.37 mm
Surface Area of Cone (Sd)m2 0.0322m2
Reference Efficiency 1.63%
Diaphragm Mass (Mms) 36.5 Grams
Mechanical Compliance (Cms) .19 mm/N
Mechanical Resistance (Rms) 2.99 Kg/s

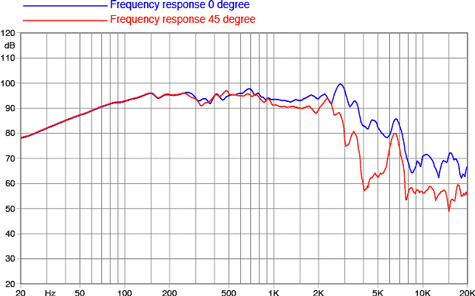

Frequency Response

Faital Pro 10PR330 Frequency

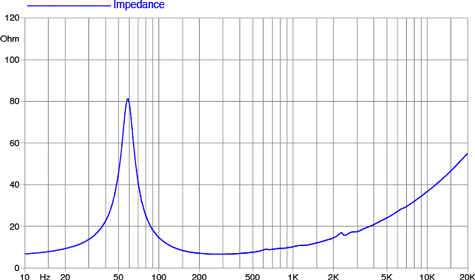

Free Air Impedance Curve
Faital Pro 10PR330 Impedance

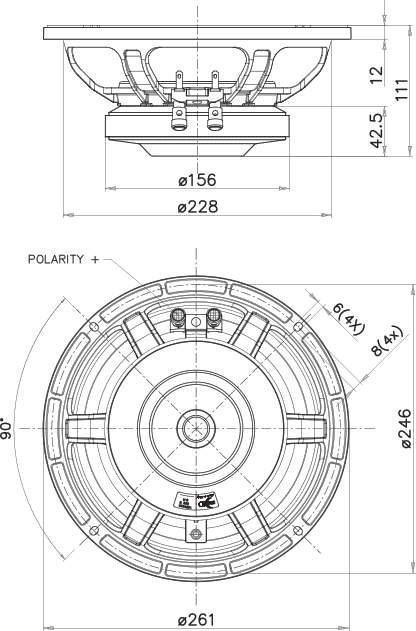

Mounting Dimensions

Faital Pro 10PR330 Dimensions
