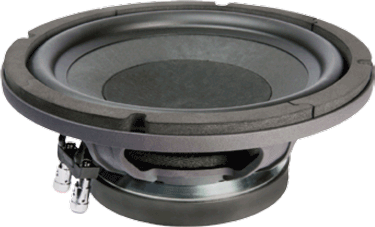

FAITAL PRO 10RS350 - 10" BASS SPEAKER

THE FAITAL PRO 10RS350 IS A 10 INCH BASS GUITAR SPEAKER THAT HAS A DEEP TIGHT BASS WITH 250 WATTS AES POWER HANDLING!

Faital Pro 10RS350

Item Price: $201.95

WOOFER MODEL 10RS350

Specifications

Nominal Basket Diameter 10" / 250mm
Impedance 8 ohms
AES Power Rating 300 Watts
Program Power 600 Watts
Frequency Response 40Hz - 2.5kHz
Sensitivity (1W/1m) 91dB SPL
Voice Coil Diameter 2.56" / 65mm
Voice Coil Length 17.4 mm
Air Gap Height 8.0 mm
X Damage (peak to peak) 17.4 mm
BL Factor 14 N/A

Mounting Information

Overall Diameter 10.28" / 261mm
Bolt Circle Diameter 9.69" / 246mm
Baffle Cutout Diameter-Front Mount 9.06" / 230mm
No. Of Mounting Holes 8
Overall Depth 4.59" / 116.5mm
Flange & gasket Thickness 0.67" / 17.1mm
Net Weight 9.3 lb. / 4.2 kg.
Shipping Weight 10.6 lb. / 4.8 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Rubber
Surround Shape Half Roll
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 40 Hz
Impedance (Re) 5.3 ohms
Coil Inductance (Le) 0.95 mH
Mechanical Q (Qms) 5.2
Electrical Factor (Qes) .4
Total Q (Qts) .37
Comp. Equivelant Vol. (Vas) 1.39 ft3 / 39.5 Liters
Voice Coil Overhang (Xmax) 7.37 mm
Surface Area of Cone (Sd)m2 0.0322m2
Reference Efficiency .61%
Diaphragm Mass (Mms) 55.7 Grams
Mechanical Compliance (Cms) .27 mm/N
Mechanical Resistance (Rms) 3.53 Kg/s

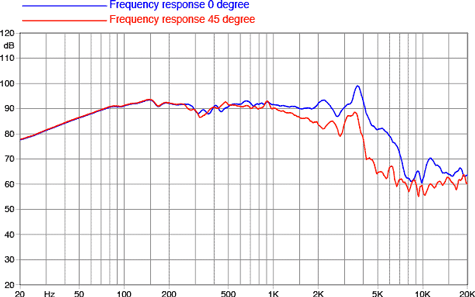

Frequency Response

Faital Pro 10RS350 Frequency

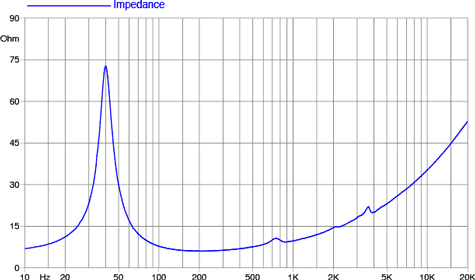

Free Air Impedance Curve
Faital Pro 10RS350 Impedance

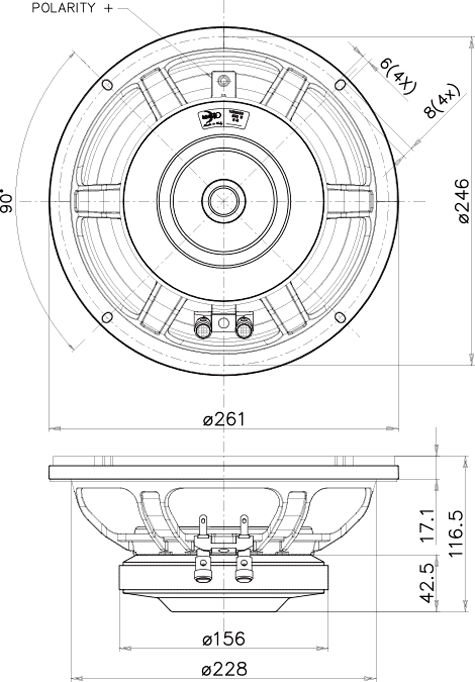

Mounting Dimensions

Faital Pro 10RS350l Drawing
