• THE FAITAL PRO 15FH510 15" SPEAKER CAN HANDLE 500 WATTS AES & 1,000 WATTS PROGRAM POWER
• HIGH EFFICIENCY OF 98DB SPL, VERY SMOOTH SOUNDING & HIGH 9.25MM XMAX FOR A STRONG BASS SOUND WITH CLEAN MIDS
• GOOD COMBINATION OF MIDS & LOWS WITH A FREQUENCY RANGE FROM 35HZ TO 3.15KHZ
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT IN HIGH END BASS GUITAR CABINETS & IN 2 OR 3-WAY PA CABINETS

THE FAITAL PRO 15FH510 IS AN EXCELLENT BASS GUITAR SPEAKER THAT SOUNDS SMOOTH WITH PUNCHY MIDS!
	Item Price: $329.95
WOOFER MODEL	15FH510
Specifications
Nominal Basket Diameter	15" / 380mm
Impedance	8 ohms
AES Power Rating	500 Watts
Program Power	1,000 Watts
Frequency Response	35Hz - 3.15kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	3" / 77mm
Voice Coil Length	22 mm
Air Gap Height	10.5 mm
X Damage	20 mm
BL Factor	21 N/A
Mounting Information
Overall Diameter	15.47" / 393mm
Bolt Circle Diameter	14.72" / 374mm
Baffle Cutout Diameter-Front Mount	13.94" / 354mm
No. Of Mounting Holes	8
Overall Depth	7.09" / 180mm
Flange & gasket Thickness	0.52" / 13.1mm
Net Weight	18.52 lb. / 8.4 kg.
Shipping Weight	19.18 lb. / 8.7 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	35 Hz
Impedance (Re)	5.1 ohms
Coil Inductance (Le)	1.4 mH
Mechanical Q (Qms)	10.7
Electrical Factor (Qes)	.27
Total Q (Qts)	.27
Comp. Equivelant Vol. (Vas)	6.14 ft3 / 173.8 Liters
Voice Coil Overhang (Xmax)	9.25 mm
Surface Area of Cone (Sd)m2	0.080m2
Reference Efficiency	2.6%
Diaphragm Mass (Mms)	95.2 Grams
Mechanical Compliance (Cms)	.19 mm/N
Mechanical Resistance (Rms)	2.2 Kg/s

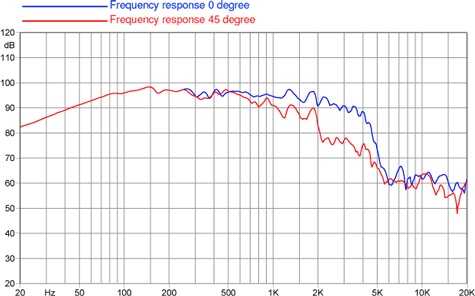

Frequency Response
Free Air Impedance Curve

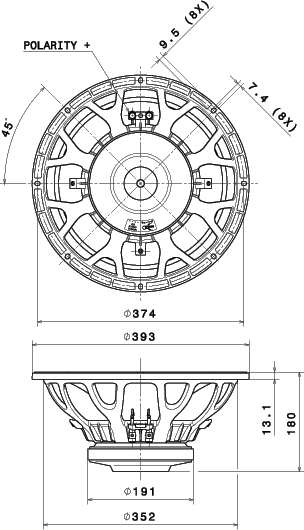

Mounting Dimensions
