FAITAL PRO 15FX560 - 15" WOOFER

VERY SMOOTH SOUNDING WITH FLAT MIDS & BASS WITH A HIGH SENSITIVITY OF 99DB SPL W/ 1,400 WATTS POWER HANDLING!

Faital Pro 15FX560

Item Price: $385.95

WOOFER MODEL 15FX560

Specifications

Nominal Basket Diameter 15" / 380mm
Impedance 8 ohms
AES Power Rating 700 Watts
Program Power 1,400 Watts
Frequency Response 40Hz - 4kHz
Sensitivity (1W/1m) 99dB SPL
Voice Coil Diameter 3" / 77mm
Voice Coil Length 23.5 mm
Air Gap Height 14 mm
X Damage (peak to peak) 21.8 mm
BL Factor 21.5 N/A

Mounting Information

Overall Diameter 16.5"/15.3 / 418.3mm/388mm
Bolt Circle Diameter 14.72" / 374mm
Baffle Cutout Diameter-Front Mount 14.01" / 356mm
No. Of Mounting Holes 8
Overall Depth 7.27" / 184.6mm
Flange & gasket Thickness 0.45" / 11.5mm
Net Weight 16.7 lb. / 7.6 kg.
Shipping Weight 19.8 lb. / 9.0 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 38 Hz
Impedance (Re) 5.2 ohms
Coil Inductance (Le) .64 mH
Mechanical Q (Qms) 6.8
Electrical Factor (Qes) .31
Total Q (Qts) .3
Comp. Equivelant Vol. (Vas) 5.05 ft3 / 143 Liters
Voice Coil Overhang (Xmax) 9.42 mm
Surface Area of Cone (Sd)m2 0.0813m2
Reference Efficiency 2.47%
Diaphragm Mass (Mms) 115 Grams
Mechanical Compliance (Cms) .15 mm/N
Mechanical Resistance (Rms) 4.06 Kg/s

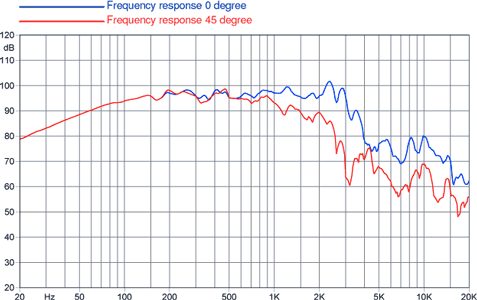

Frequency Response

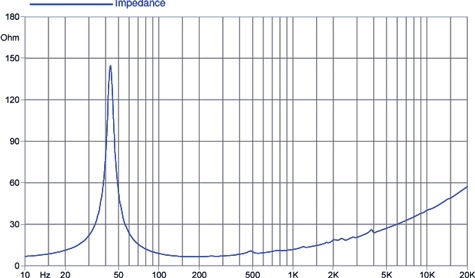

Impedance Curve

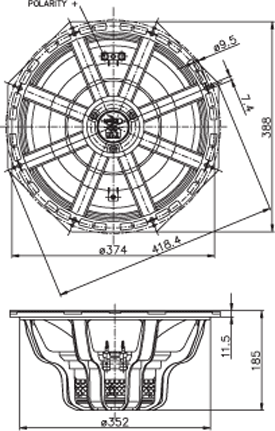

Mounting Dimensions
