FAITAL PRO 15HP1020 - 15" HIGH POWER WOOFER

NICE DEEP BASS THAT IS STRONG & TIGHT SOUNDING & HANDLES 700 WATTS AES WITH HIGH 9.5MM XMAX & HIGH 99DB SPL!

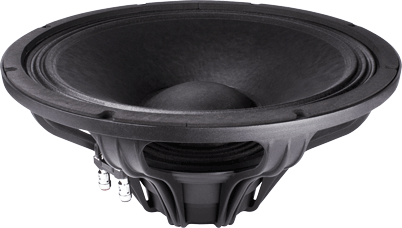

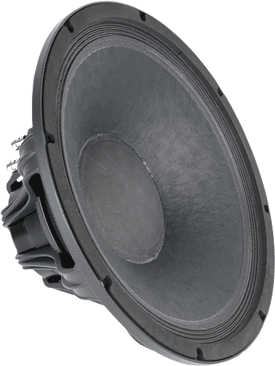

Faital Pro 15HP1020

Item Price: $379.95

WOOFER MODEL 15HP1020

Specifications

Nominal Basket Diameter 15" / 380mm
Impedance 8 ohms
AES Power Rating 700 Watts
Program Power 1,400 Watts
Frequency Response 40Hz - 3.15kHz
Sensitivity (1W/1m) 99dB SPL
Voice Coil Diameter 4" / 100mm
Voice Coil Length 23 mm
Air Gap Height 12 mm
X Damage (peak to peak) 16 mm
BL Factor 24.2 N/A

Mounting Information

Overall Diameter 15.47" / 393mm
Bolt Circle Diameter 14.72" / 374mm
Baffle Cutout Diameter-Front Mount 13.94" / 354mm
No. Of Mounting Holes 8
Overall Depth 7.14" / 181.3mm
Flange & gasket Thickness 0.54" / 13.7mm
Net Weight 13 lb. / 5.9 kg.
Shipping Weight 14.3 lb. / 6.5 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 40 Hz
Impedance (Re) 5.5 ohms
Coil Inductance (Le) 1.2 mH
Mechanical Q (Qms) 10.2
Electrical Factor (Qes) .28
Total Q (Qts) .27
Comp. Equivelant Vol. (Vas) 3.87 ft3 / 109.6 Liters
Voice Coil Overhang (Xmax) 9.5 mm
Surface Area of Cone (Sd)m2 0.0759m2
Reference Efficiency 2.45%
Diaphragm Mass (Mms) 118 Grams
Mechanical Compliance (Cms) .013 mm/N
Mechanical Resistance (Rms) 2.9 Kg/s

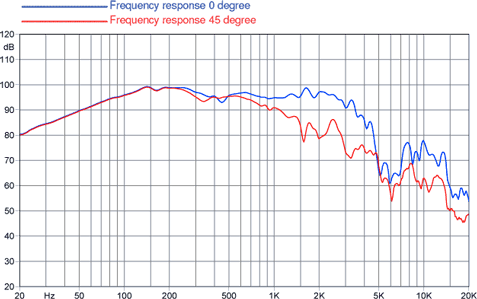

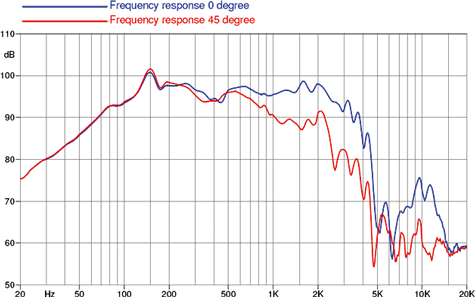

Frequency Response

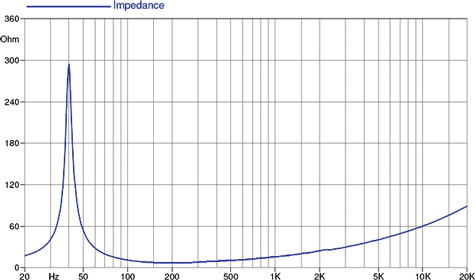

Free Air Impedance Curve

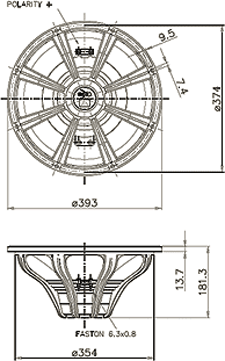

Mounting Dimensions
