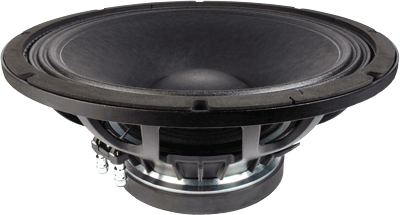

FAITAL PRO 15HP1010 - 15" HIGH POWER WOOFER

STRONG TIGHT SOUNDING BASS & HIGH 9.75MM XMAX THAT WORKS GREAT FOR BASS GUITAR CABINETS!

Faital Pro 15HP1010

Item Price: $299.95

WOOFER MODEL 15HP1010

Specifications

Nominal Basket Diameter 15" / 380mm
Impedance 8 ohms
AES Power Rating 700 Watts
Program Power 1,400 Watts
Frequency Response 40Hz - 2.5kHz
Sensitivity (1W/1m) 96dB SPL
Voice Coil Diameter 4" / 100mm
Voice Coil Length 23 mm
Air Gap Height 10.5 mm
X Damage (peak to peak) 21.9 mm
BL Factor 22 N/A

Mounting Information

Overall Diameter 15.47" / 393mm
Bolt Circle Diameter 14.72" / 374mm
Baffle Cutout Diameter-Front Mount 13.94" / 354mm
No. Of Mounting Holes 8
Overall Depth 7.2" / 183mm
Flange & gasket Thickness 0.52" / 13.3mm
Net Weight 21.51 lb. / 9.75 kg.
Shipping Weight 22.93 lb. / 10.4 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Copper
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 40 Hz
Impedance (Re) 5.3 ohms
Coil Inductance (Le) 1.8 mH
Mechanical Q (Qms) 10.0
Electrical Factor (Qes) .38
Total Q (Qts) .37
Comp. Equivelant Vol. (Vas) 3.29 ft3 / 93.1 Liters
Voice Coil Overhang (Xmax) 9.75 mm
Surface Area of Cone (Sd)m2 0.0759m2
Reference Efficiency 1.5%
Diaphragm Mass (Mms) 138.9 Grams
Mechanical Compliance (Cms) .011 mm/N
Mechanical Resistance (Rms) 3.49 Kg/s

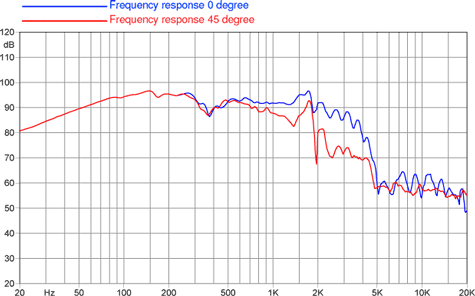

Frequency Response

Faital Pro HP1010

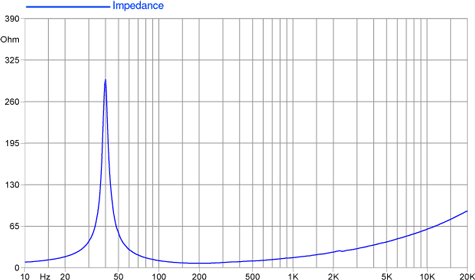

Free Air Impedance Curve

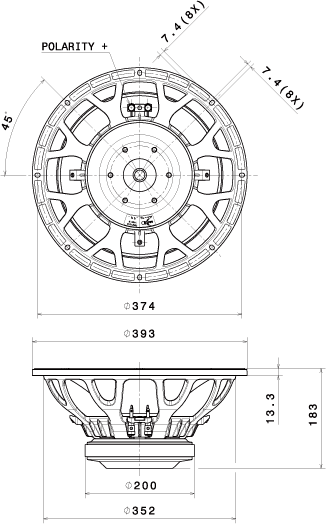

Mounting Dimensions
