FAITAL PRO 15HP1030 - 15" HIGH POWER WOOFER

VERY STRONG DEEP SOUNDING BASS & A VERY HIGH 12.45MM XMAX THAT WORKS GREAT FOR SUBWOOFER  CABINETS!

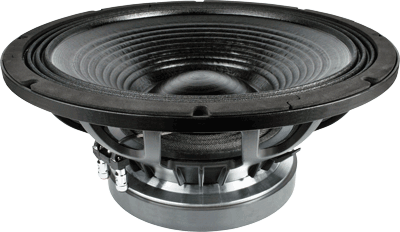

Faital Pro 15HP1030

4 Ohms

Item Price: $390.95

8 Ohms

Item Price: $390.95

WOOFER MODEL 15HP1030

Specifications

Nominal Basket Diameter 15" / 380mm
Impedance 4 or 8 ohms
AES Power Rating 1,000 Watts
Program Power 2,000 Watts
Frequency Response 40Hz - 2.0kHz
Sensitivity (1W/1m) 96dB SPL
Voice Coil Diameter 4" / 100mm
Voice Coil Length 28.9 mm
Air Gap Height 12 mm
X Damage (peak to peak) 23.05 mm
BL Factor 24.3 N/A

Mounting Information

Overall Diameter 15.47" / 393mm
Bolt Circle Diameter 14.72" / 374mm
Baffle Cutout Diameter-Front Mount 13.94" / 354mm
No. Of Mounting Holes 8
Overall Depth 7.4" / 188mm
Flange & gasket Thickness 0.55" / 14mm
Net Weight 25.85 lb. / 11.7 kg.
Shipping Weight 27.78lb. / 12.6 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Copper
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 40 Hz
Impedance (Re) 5.0 ohms
Coil Inductance (Le) 1.4 mH
Mechanical Q (Qms) 11.8
Electrical Factor (Qes) .35
Total Q (Qts) .34
Comp. Equivelant Vol. (Vas) 2.92 ft3 / 82.8 Liters
Voice Coil Overhang (Xmax) 12.45 mm
Surface Area of Cone (Sd)m2 0.0780m2
Reference Efficiency 1.46%
Diaphragm Mass (Mms) 152.6 Grams
Mechanical Compliance (Cms) .1 mm/N
Mechanical Resistance (Rms) 3.5 Kg/s

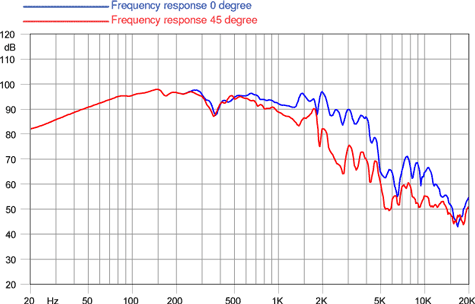

Frequency Response

Faital Pro 15HP1030

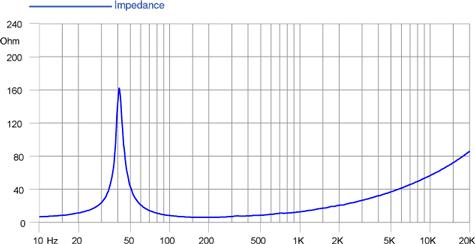

Free Air Impedance Curve

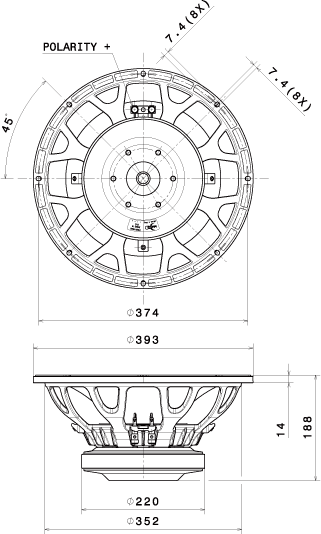

Mounting Dimensions
