FAITAL PRO 6FE100 - 6.5" BASS / MID-BASS SPEAKER

THE FAITAL PRO 6FE100 6.5" SPEAKER HAS A TIGHT BASS & CLEAR MIDS W/ 200 WATTS POWER HANDLING & 5.25MM XMAX!

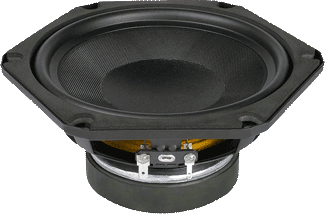

Faital Pro 6Fe100 Speaker

8 Ohms

Item Price: $41.99

WOOFER MODEL 6FE100

Specifications

Nominal Basket Diameter 6.5" / 160mm
Impedance 8 ohms
AES Power Rating 100 Watts
Program Power 200 Watts
Frequency Response 63Hz - 5.0kHz
Sensitivity (1W/1m) 91dB SPL
Voice Coil Diameter 1.26" / 32mm
Voice Coil Length 12.5 mm
Air Gap Height 6.0 mm
X Damage (peak to peak) 13.15 mm
Flux Density 1.0 T
BL Factor 6.8 N/A

Mounting Information

Overall Diameter 7.13" / 181.2mm
Overall Diameter Across Flats 6.46" / 164mm
Bolt Circle Diameter 6.57" / 167mm
Baffle Cutout Diameter-Front Mount 5.79" / 147mm
No. Of Mounting Holes 6
Overall Depth 3.33" / 84.5mm
Flange & gasket Thickness 0.31" / 8.0mm
Net Weight 2.6 lb. / 1.2 kg.

Materials

Basket Steel
Cone Paper Pulp (Weather Proof)
Surround Rubber
Former Material Kapton
Voice Coil Copper
Demodulation Ring Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 61 Hz
Impedance (Re) 5.4 ohms
Coil Inductance (Le) 0.5 mH
Mechanical Q (Qms) 6.0
Electrical Factor (Qes) .6
Total Q (Qts) .54
Comp. Equivelant Vol. (Vas) 0.5 ft3 / 14.1 Liters
Voice Coil Overhang (Xmax) 5.25 mm
Surface Area of Cone (Sd)m2 0.0143m2
Reference Efficiency .5%
Diaphragm Mass (Mms) 14 Grams
Mechanical Compliance (Cms) .48 mm/N
Mechanical Resistance (Rms) .9 Kg/s

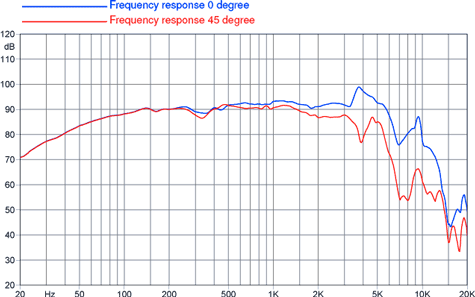

Frequency Response

Faital Pro 6Fe100 Frequency

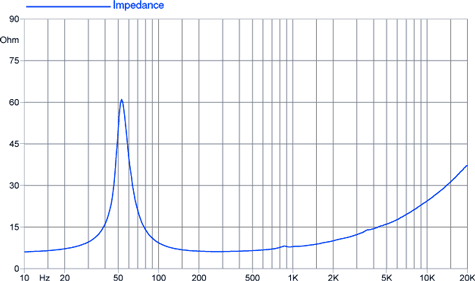

Free Air Impedance Curve
Faital Pro 6Fe100 Impedance

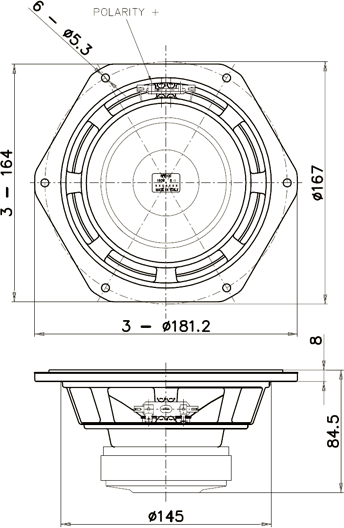

Mounting Dimensions

Faital Pro 6Fe100 Dimensions
