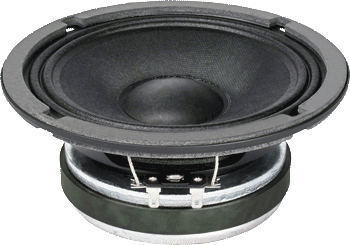

FAITAL PRO 6FE200 - 6.5" MID-BASS SPEAKER

THE FAITAL PRO 6FE200 6.5" SPEAKER HAS A CLEAN MIDRANGE WITH TIGHT BASS W/ 260 WATTS POWER HANDLING & 4.67MM XMAX!

Faital Pro 6Fe200

4 Ohms

Item Price: $44.00

8 Ohms

Item Price: $44.00

WOOFER MODEL 6FE200

Specifications

Nominal Basket Diameter 6.5" / 160mm
Impedance 4 or 8 ohms
AES Power Rating 130 Watts
Program Power 260 Watts
Frequency Response 85Hz - 6.0kHz
Sensitivity (1W/1m) 95dB SPL
Voice Coil Diameter 1.46" / 37mm
Voice Coil Length 12 mm
Air Gap Height 8.0 mm
X Damage (peak to peak) 10.4 mm
BL Factor 8.2 N/A

Mounting Information

Overall Diameter 6.59" / 167.4mm
Bolt Circle Diameter 6.06" / 154mm
Baffle Cutout Diameter-Front Mount 5.67" / 144mm
No. Of Mounting Holes 4
Overall Depth 3" / 77mm
Flange & gasket Thickness 0.31" / 8.0mm
Net Weight 4.41 lb. / 2 kg.
Shipping Weight 5.73 lb. / 2.6 kg.

Materials

Basket Steel
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Kapton
Voice Coil Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 120 Hz
Impedance (Re) 5.9 ohms
Coil Inductance (Le) 0.4 mH
Mechanical Q (Qms) 6.2
Electrical Factor (Qes) .75
Total Q (Qts) .67
Comp. Equivelant Vol. (Vas) 0.11 ft3 / 3 Liters
Voice Coil Overhang (Xmax) 4.67 mm
Surface Area of Cone (Sd)m2 0.0118m2
Reference Efficiency .67%
Diaphragm Mass (Mms) 11 Grams
Mechanical Compliance (Cms) .15 mm/N
Mechanical Resistance (Rms) 1.4 Kg/s

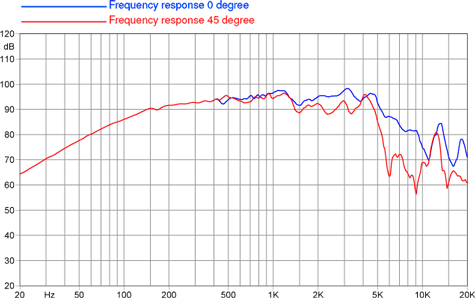

Frequency Response

Faital Pro 6Fe200 Frequency

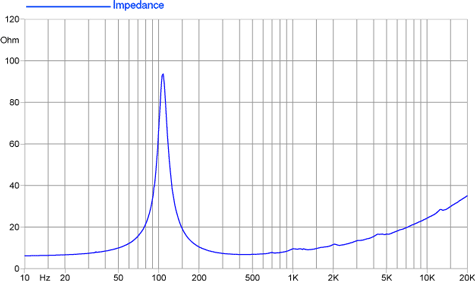

Free Air Impedance Curve
Faital Pro 6Fe200 Impedance

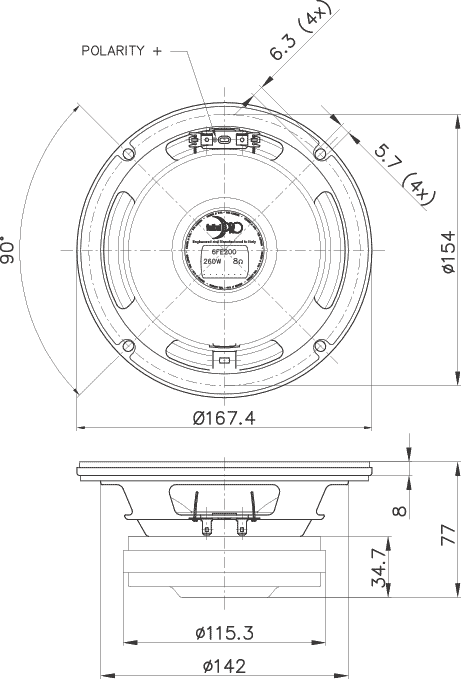

Mounting Dimensions

Faital Pro 6Fe200 Dimensions
