FAITAL PRO 8FE200 - 8" MID-BASS SPEAKER

THE FAITAL PRO 8FE200 IS AN 8" SPEAKER THAT HAS A TIGHT CLEAN SOUND, ONLY WEIGHS 4.74LBS. & HANDLES 130 WATTS AES!

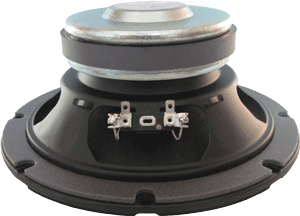

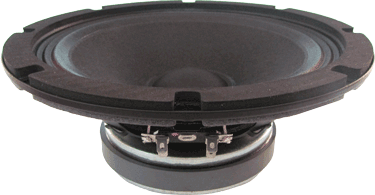

Faital Pro 8Fe200Faital Pro 8FE200 back

4 Ohms

Item Price: $63.95

8 Ohms

Item Price: $63.95

WOOFER MODEL 8FE200

Specifications

Nominal Basket Diameter 8" / 200mm
Impedance 4 or 8 ohms
AES Power Rating 130 Watts
Program Power 260 Watts
Frequency Response 60Hz - 5.0kHz
Sensitivity (1W/1m) 95dB SPL
Voice Coil Diameter 1.46" / 37mm
Voice Coil Length 12 mm
Air Gap Height 8 mm
X Damage 10.4 mm
BL Factor 8.2 N/A

Mounting Information

Overall Diameter 8.24" / 209.2mm
Bolt Circle Diameter 7.75" / 196.9mm
Baffle Cutout Diameter-Front Mount 7.01" / 178mm
No. Of Mounting Holes 8
Overall Depth 3.5" / 89mm
Flange & gasket Thickness 0.31" / 8mm
Net Weight 4.7 lb. / 2.2 kg.
Shipping Weight 6.06 lb. / 3 kg.

Materials

Basket Steel
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Kapton
Voice Coil Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 80 Hz
Impedance (Re) 5.9 ohms
Coil Inductance (Le) 0.44 mH
Mechanical Q (Qms) 13
Electrical Factor (Qes) .66
Total Q (Qts) .63
Comp. Equivelant Vol. (Vas) 0.48 ft3 / 13.6 Liters
Voice Coil Overhang (Xmax) 4.67 mm
Surface Area of Cone (Sd)m2 0.0191m2
Reference Efficiency 1.3%
Diaphragm Mass (Mms) 15 Grams
Mechanical Compliance (Cms) .36 mm/N
Mechanical Resistance (Rms) .5 Kg/s

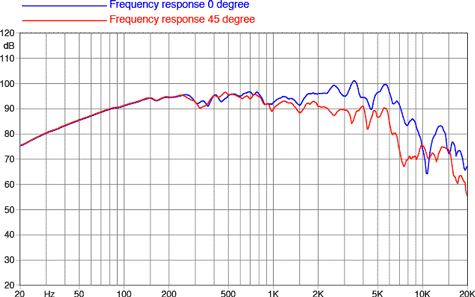

Frequency Response

Faital Pro 8Fe200

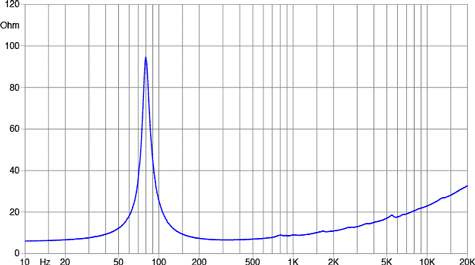

Free Air Impedance Curve
Faital Pro 8Fe200 Impedance Graph

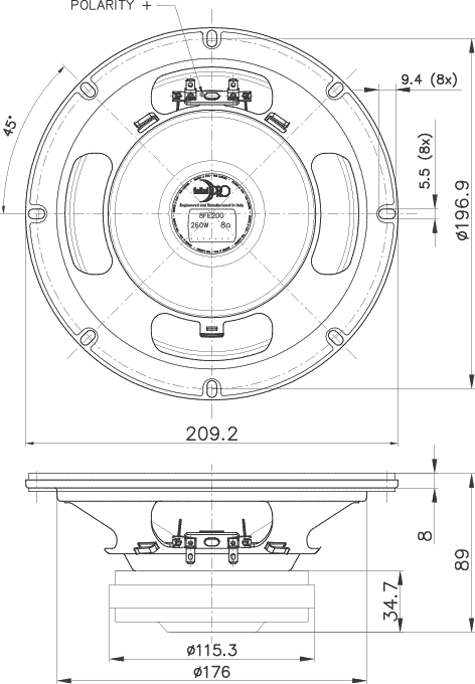

Mounting Dimensions

Faital Pro 8Fe200 Dimensions
