FAITAL PRO 8PR155 - 8" MID-BASS / MIDRANGE SPEAKER

ALUMINUM DEMODULATION RING FOR A FLAT RESPONSE AND LOW DISTORTION THAT WORKS GREAT AS A MID-BASS OR MIDRANGE SPEAKER!

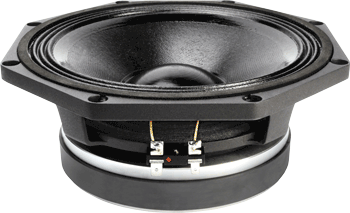

Faital Pro 8PR155

Item Price: $160.95

WOOFER MODEL 8PR155

Specifications

Nominal Basket Diameter 8" / 200mm
Impedance 8 ohms
AES Power Rating 200 Watts
Program Power 400 Watts
Frequency Response 80Hz - 6.3kHz
Sensitivity (1W/1m) 97dB SPL
Voice Coil Diameter 2" / 52mm
Voice Coil Length 9.8 mm
Air Gap Height 8.0 mm
X Damage (peak to peak) 10.65 mm
BL Factor 13 N/A

Mounting Information

Overall Diameter 8.81"/8.18" / 223.8mm/207.9
Bolt Circle Diameter 8.27" / 210mm
Baffle Cutout Diameter-Front Mount 7.2" / 183mm
No. Of Mounting Holes 8
Overall Depth 3.88" / 98.5mm
Flange & gasket Thickness 0.43" / 10.8mm
Net Weight 9.5 lb. / 4.3 kg.
Shipping Weight 10.1 lb. / 4.6 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 90 Hz
Impedance (Re) 5.3 ohms
Coil Inductance (Le) 0.41 mH
Mechanical Q (Qms) 8.5
Electrical Factor (Qes) .41
Total Q (Qts) .39
Comp. Equivelant Vol. (Vas) 0.83 ft3 / 29 Liters
Voice Coil Overhang (Xmax) 3.57 mm
Surface Area of Cone (Sd)m2 0.0207m2
Reference Efficiency 1.44%
Diaphragm Mass (Mms) 23 Grams
Mechanical Compliance (Cms) .14 mm/N
Mechanical Resistance (Rms) 1.53 Kg/s

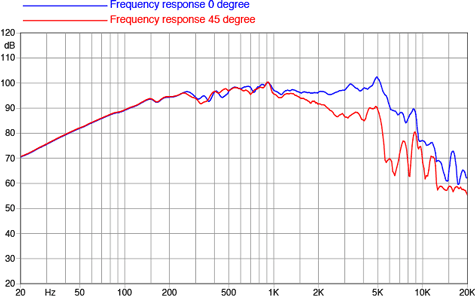

Frequency Response

Faital Pro 8PR155 Frequency

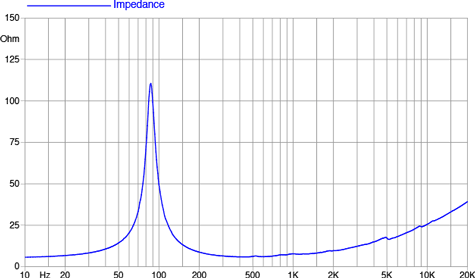

Free Air Impedance Curve
Faital Pro 8PR155 Impedance

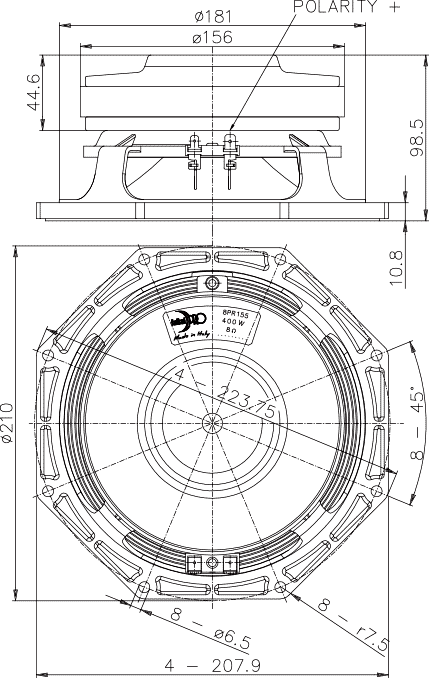

Mounting Dimensions

Faital Pro 8PR155 Dimension
