FAITAL PRO 8RS250 - 8" MID-BASS / BASS SPEAKER

THE FAITAL PRO 8RS250 FEATURES AN ALUMINUM DEMODULATION RING FOR A FLAT RESPONSE AND LOW DISTORTION & HALF ROLL RUBBER SURROUND!

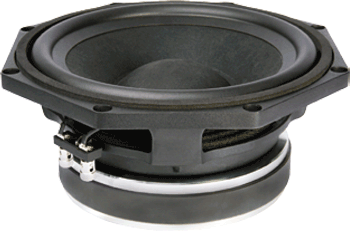

Faital Pro 8RS250

Item Price: $178.95

WOOFER MODEL 8RS250

Specifications

Nominal Basket Diameter 8" / 200mm
Impedance 8 ohms
AES Power Rating 200 Watts
Program Power 400 Watts
Frequency Response 60Hz - 6.3kHz
Sensitivity (1W/1m) 93dB SPL
Voice Coil Diameter 2" / 52mm
Voice Coil Length 16.5 mm
Air Gap Height 8.0 mm
X Damage (peak to peak) 15.7 mm
BL Factor 13.5 N/A

Mounting Information

Overall Diameter 8.81"/8.18" / 223.8mm/207.9
Bolt Circle Diameter 8.27" / 210mm
Baffle Cutout Diameter-Front Mount 7.2" / 183mm
No. Of Mounting Holes 8
Overall Depth 4.25" / 108mm
Flange & gasket Thickness 0.6" / 15.3mm
Net Weight 9.7 lb. / 4.4 kg.
Shipping Weight 10.4 lb. / 4.7 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Rubber
Surround Shape Half Roll
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 56 Hz
Impedance (Re) 5.7 ohms
Coil Inductance (Le) 0.35 mH
Mechanical Q (Qms) 5.7
Electrical Factor (Qes) .34
Total Q (Qts) .32
Comp. Equivelant Vol. (Vas) 0.57 ft3 / 16 Liters
Voice Coil Overhang (Xmax) 6.92 mm
Surface Area of Cone (Sd)m2 0.0207m2
Reference Efficiency .81%
Diaphragm Mass (Mms) 30.6 Grams
Mechanical Compliance (Cms) .26 mm/N
Mechanical Resistance (Rms) 1.89 Kg/s

Frequency Response

Faital Pro 8RS250 Frequency

Free Air Impedance Curve
Faital Pro 8RS250 Impedance

Mounting Dimensions

Faital Pro 8RS250 Dimensions
