• THE NEW FAITAL PRO W10N8-700 10" SPEAKER CAN HANDLE 700 WATTS AES & 1,400 WATTS PROGRAM POWER
• EFFICIENCY IS 96DB SPL & HAS A VERY HIGH 9.0MM XMAX FOR CLEAN STRONG SOUND
• LARGE 4" VOICE COIL, HIGH 24.7 BL FACTOR & A WIDE FREQUENCY RANGE FROM 60HZ TO 4.0KHZ
• WEIGHS ONLY 11.0 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR 2 OR 3-WAY HIGH POWER PA SPEAKER SYSTEMS & BASS GUITAR CABINETS

THE W10N8-700 HANDLES POWERFUL BASS & MIDS WITH 700 WATTS AES POWER HANDLING!
	Item Price: $259.95
WOOFER MODEL	W10N8-700
Specifications
Nominal Basket Diameter	10" / 250mm
Impedance	8 ohms
AES Power Rating	700 Watts
Program Power	1,400 Watts
Frequency Response	60Hz - 4.0kHz
Sensitivity (1W/1m)	96dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	22 mm
Air Gap Height	12 mm
X Damage (peak to peak)	12.5 mm
BL Factor	24.7 N/A
Mounting Information
Overall Diameter	10.28" / 261mm
Bolt Circle Diameter	9.69" / 246mm
Baffle Cutout Diameter-Front Mount	9.06" / 230mm
No. Of Mounting Holes	8
Overall Depth	5.56" / 141.3mm
Flange & gasket Thickness	0.49" / 12.5mm
Net Weight	11.0 lb. / 5.0 kg.
Shipping Weight	12.3 lb. / 5.6 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	56 Hz
Impedance (Re)	5.5 ohms
Coil Inductance (Le)	0.95 mH
Mechanical Q (Qms)	7.32
Electrical Factor (Qes)	.20
Total Q (Qts)	.20
Comp. Equivelant Vol. (Vas)	0.63 ft3 / 17.84 Liters
Voice Coil Overhang (Xmax)	9.0 mm
Surface Area of Cone (Sd)m2	0.0319m2
Reference Efficiency	1.5%
Diaphragm Mass (Mms)	64.8 Grams
Mechanical Compliance (Cms)	.12 mm/N
Mechanical Resistance (Rms)	3.11 Kg/s

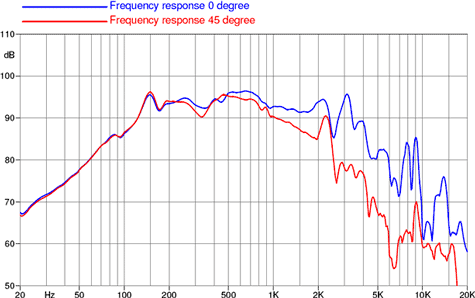

Frequency Response

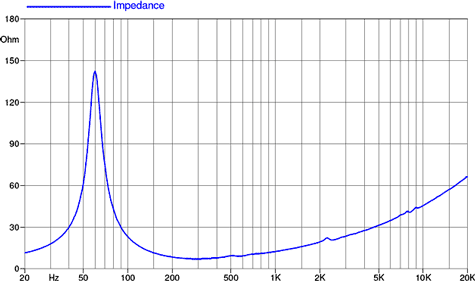

Free Air Impedance Curve

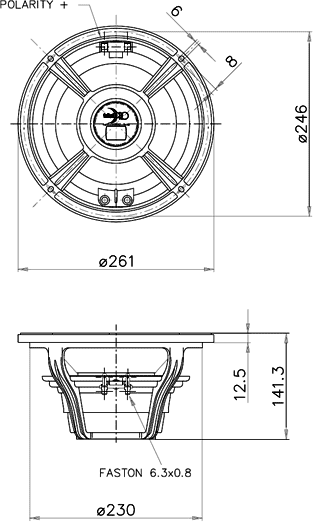

Mounting Dimensions
