FAITAL PRO W12N8-200 - 12" HIGH POWER WOOFER
|
|
|
FAITAL PRO W12N8-200 - 12" HIGH POWER WOOFER |
|
HIGH SENSITIVITY OF 99DB SPL W/ A WIDE FREQUENCY RANGE FROM 50HZ TO 5KHZ THAT IS SMOOTH & TIGHT SOUNDING! |
|
|
|
W12N4-200 - 4 Ohm Version
Item Price: $119.95 |
|
W12N8-200 - 8 Ohm Version
Item Price: $119.95 |
|
| WOOFER MODEL | W12N8-200 |
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
4 or 8 ohms |
|
AES
Power Rating |
200 Watts |
| Program Power | 400 Watts |
| Frequency Response | 50Hz - 5.0kHz |
|
Sensitivity
(1W/1m) |
99dB SPL |
| Voice Coil Diameter | 2.5" / 65mm |
| Voice Coil Length | 12.5 mm |
| Air Gap Height | 8mm |
| X Damage (peak to peak) | 14mm |
| BL Factor | 13.7 N/A |
|
Mounting Information |
|
| Overall Diameter | 12.4" / 315.2mm |
| Bolt Circle Diameter | 11.75" / 298.5mm |
| Baffle Cutout Diameter-Front Mount | 11.16" / 283.5mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 5.54" / 140.6mm |
| Flange & gasket Thickness | 0.48" / 12.1mm |
| Net Weight | 5.3 lb. / 2.4 kg. |
| Shipping Weight | 6.6 lb. / 3 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 50 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | 0.56 mH |
| Mechanical Q (Qms) | 7.2 |
| Electrical Factor (Qes) | .4 |
| Total Q (Qts) | .38 |
| Comp. Equivelant Vol. (Vas) | 2.73 ft3 / 77.3 Liters |
| Voice Coil Overhang (Xmax) | 4.92 mm |
| Surface Area of Cone (Sd)m2 | 0.04904m2 |
| Reference Efficiency | 2.32% |
| Diaphragm Mass (Mms) | 44.7 Grams |
| Mechanical Compliance (Cms) | .22 mm/N |
| Mechanical Resistance (Rms) | 2.02 Kg/s |
|

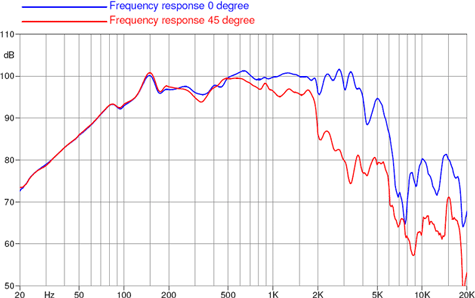

Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|

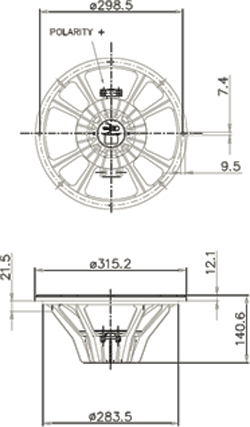

Mounting Dimensions |
|
|
|
|
