• THE NEW FAITAL PRO W12N8-350 12" HIGH POWER WOOFER CAN HANDLE 350 WATTS AES & 700 WATTS PROGRAM POWER
• 98DB SPL, 3" VOICE COIL, 50HZ TO 4.0KHZ FREQUENCY RANGE & A HIGH 5.75MM XMAX FOR CLEAN SOUND
• NICE SMOOTH TIGHT BASS W/ VERY CLEAN SOUNDING MIDRANGE
• WEIGHS ONLY 6.38 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR 2 OR 3-WAY PA SPEAKER SYSTEMS & BASS GUITAR CABINETS

HIGH 5.75MM XMAX FOR A SMOOTH SOUNDING BASS AND MIDS WITH 700 WATTS POWER HANDLING!
	Item Price: $165.95
WOOFER MODEL	W12N8-350
Specifications
Nominal Basket Diameter	12" / 300mm
Impedance	8 ohms
AES Power Rating	350 Watts
Program Power	700 Watts
Frequency Response	50Hz - 4.0kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	3" / 77mm
Voice Coil Length	15 mm
Air Gap Height	10.5 mm
X Damage (peak to peak)	15 mm
BL Factor	16.1 N/A
Mounting Information
Overall Diameter	12.4" / 315.2mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount	11.16" / 283.5mm
No. Of Mounting Holes	8
Overall Depth	5.54" / 140.6mm
Flange & gasket Thickness	0.48" / 12.1mm
Net Weight	6.38 lb. / 2.9 kg.
Shipping Weight	8.14 lb. / 3.7 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	50 Hz
Impedance (Re)	5.1 ohms
Coil Inductance (Le)	0.78 mH
Mechanical Q (Qms)	6.91
Electrical Factor (Qes)	.32
Total Q (Qts)	.3
Comp. Equivelant Vol. (Vas)	2.29 ft3 / 65 Liters
Voice Coil Overhang (Xmax)	5.75 mm
Surface Area of Cone (Sd)m2	0.04865m2
Reference Efficiency	2.45%
Diaphragm Mass (Mms)	52.3 Grams
Mechanical Compliance (Cms)	.21 mm/N
Mechanical Resistance (Rms)	2.3 Kg/s

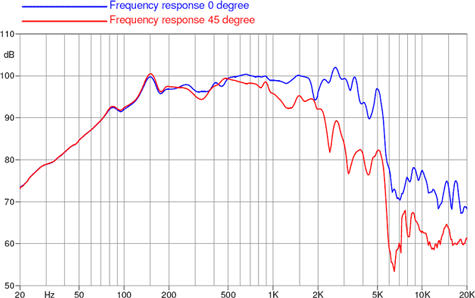

Frequency Response

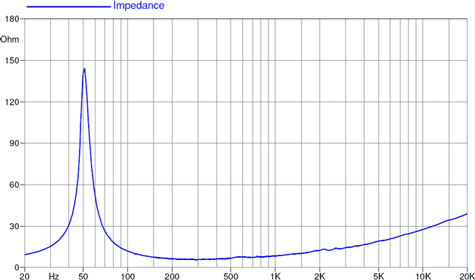

Free Air Impedance Curve

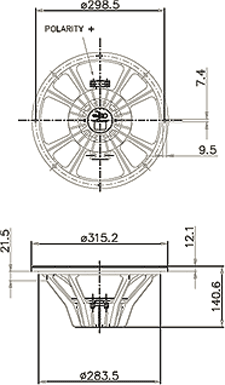

Mounting Dimensions
