• THE NEW FAITAL PRO W15N8-350 15" SPEAKER CAN HANDLE 350 WATTS AES & 700 WATTS PROGRAM POWER
• HIGH EFFICIENCY OF 99DB SPL & GOOD 5.75MM XMAX FOR CLEAN TIGHT SOUND
• WIDE FREQUENCY RANGE FROM 35HZ TO 4.0KHZ
• WEIGHS ONLY 7.92 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR 2 OR 3-WAY CABINETS

THE W15N8-350 HAS GOOD TIGHT BASS & MIDS WITH 350 WATTS AES POWER HANDLING!
	Item Price: $219.95
WOOFER MODEL	W15N8-350
Specifications
Nominal Basket Diameter	15" / 380mm
Impedance	8 ohms
AES Power Rating	350 Watts
Program Power	700 Watts
Frequency Response	35Hz - 4.0kHz
Sensitivity (1W/1m)	99dB SPL
Voice Coil Diameter	3" / 77mm
Voice Coil Length	15 mm
Air Gap Height	10.5 mm
X Damage (peak to peak)	15.5 mm
BL Factor	16.7 N/A
Mounting Information
Overall Diameter	15.47" / 393mm
Bolt Circle Diameter	14.72" / 374mm
Baffle Cutout Diameter-Front Mount	13.94" / 354mm
No. Of Mounting Holes	8
Overall Depth	6.48" / 164.7mm
Flange & gasket Thickness	0.52" / 13.1mm
Net Weight	7.92 lb. / 3.6 kg.
Shipping Weight	10.34 lb. / 4.7 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	32 Hz
Impedance (Re)	5.1 ohms
Coil Inductance (Le)	0.75 mH
Mechanical Q (Qms)	6.02
Electrical Factor (Qes)	.31
Total Q (Qts)	.30
Comp. Equivelant Vol. (Vas)	9.44 ft3 / 267.3 Liters
Voice Coil Overhang (Xmax)	5.75 mm
Surface Area of Cone (Sd)m2	0.08055m2
Reference Efficiency	2.68%
Diaphragm Mass (Mms)	85.2 Grams
Mechanical Compliance (Cms)	.29 mm/N
Mechanical Resistance (Rms)	2.85 Kg/s

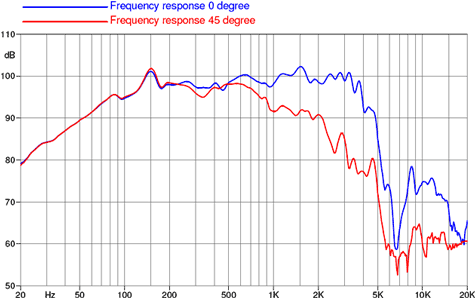

Frequency Response

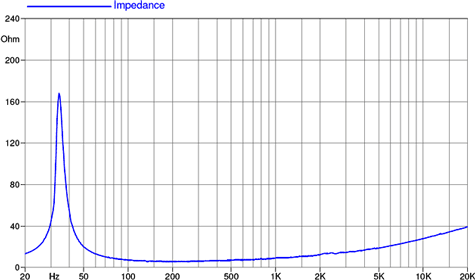

Free Air Impedance Curve

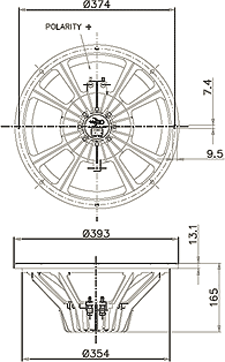

Mounting Dimensions
