Jensen 'C Series'
C12R - 12" GUITAR SPEAKER
|
|
|
C12R - 12" GUITAR SPEAKER |
 |
Item Price: $47.95 |
|
C12R-8 - 8 ohm version |
|
C12R-16 - 16 ohm version |
|
SPEAKER
MODEL |
C12R |
|
Specifications |
|
|
Nominal
Basket Diameter |
12"
/ 306mm |
|
RMS Power |
25
Watts |
| Pogram Power | 50 Watts |
|

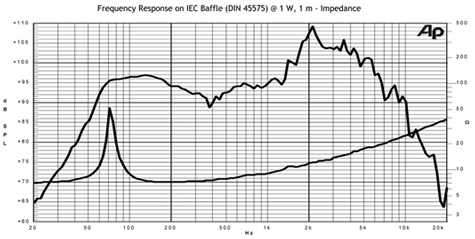

Frequency
Response |
70Hz
-6kHz |
|
Sensitivity
(1W/1m) |
93.8dB |
|
Voice
Coil Diameter |
1"
/ 25mm |
| Magnet Assembly Weight | 9.5 oz. |
|
Speaker Materials |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Kapton |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Felt |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 10.91" / 277mm |
| Overall Depth | 4.15" / 105.4mm |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 74 Hz |
| Impedance
(Re) |
6.5 ohms |
| Coil Inductance (Le) | .49mH |
| Electromagnetic Q (Qes) | 2.06 |
| Mechanical Q (Qms) | 21.48 |
| Total Q (Qts) | 1.88 |
| Compliance Equiv. Vol. (Vas) | 63.2 Liters/2.23cu. ft. |
| Voice Coil Overhang (Xmax) | 0.8mm |
| Surface Area of Cone (Sd) | .04908 m2 |
| Efficiency (Half Space) % | 1.2% |
| Pe Maximum (Watts) | 50 |
|

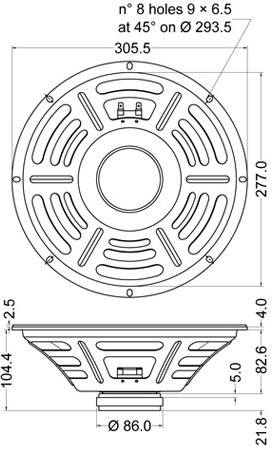

Mounting Dimensions |
|
|
|
|
