Jensen 'C Series'

C15K  -  15" GUITAR SPEAKER

Item Price: $131.95
Jensen C15K

C15K-8  -  8 ohm version

C15K-16  -  16 ohm version

SPEAKER MODEL

C15K

Specifications

Nominal Basket Diameter

15" / 385mm

RMS Power

100 Watts

Program Power 200 Watts

Frequency Response

50Hz -4kHz

Sensitivity (1W/1m)

98dB SPL

Voice Coil Diameter

2" / 50mm

Magnet Assembly Weight 51.2 oz.
Net Weight 11.35 lbs. / 5.16 kg.

Speaker Materials

Magnet Ferrite
Voice Coil Winding Copper
Voice Coil Former Kapton
Cone Paper
Surround Integrated Paper
Dust Dome Non Treated Paper
Basket Pressed Sheet Steel

Mounting Information

Overall Diameter 15.08" / 385mm
Front Mount Baffle Cutout 14.09" / 358mm
Overall Depth 5.7" / 144mm

Thiele-Small Parameters

Resonant Frequency (fs) 73 Hz
Impedance (Re) 6.7 ohms
Coil Inductance (Le) .96mH
Electromagnetic Q (Qes) .91
Mechanical Q (Qms) 14.39
Total Q (Qts) 0.86
Compliance Equiv. Vol. (Vas) 87.6 Liters/3.45cu. ft.
Voice Coil Overhang (Xmax) 1.0mm
Surface Area of Cone (Sd) .04908 m2
Efficiency (Half Space) % 3.6%
Pe Maximum (Watts) 200

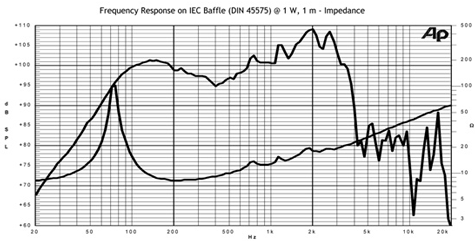

Frequency Response

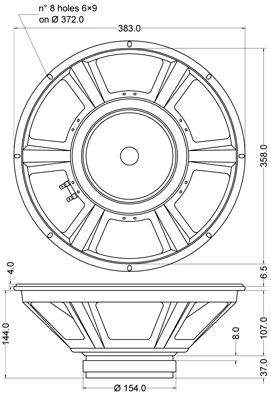

Mounting Dimension
