Jensen 'C Series'

C15N  -  15" GUITAR SPEAKER

Item Price: $119.95
Jensen C15N

C15N-4  -  4 ohm version

C15N-8  -  8 ohm version

C15N-16  -  16 ohm version

SPEAKER MODEL

C15N

Specifications

Nominal Basket Diameter

15" / 385mm

RMS Power

50 Watts

Program Power 100 Watts

Frequency Response

60Hz -7kHz

Sensitivity (1W/1m)

97.4dB SPL

Voice Coil Diameter

1.5" / 38mm

Magnet Assembly Weight 28.6 oz.
Net Weight 9.05 lbs. / 4.11 kg.

Speaker Materials

Magnet Ferrite
Voice Coil Winding Copper
Voice Coil Former Kapton
Cone Paper
Surround Integrated Paper
Dust Dome Non Treated Paper
Basket Pressed Sheet Steel

Mounting Information

Overall Diameter 15.08" / 385mm
Front Mount Baffle Cutout 14.09" / 358mm
Overall Depth 5.45" / 138.5mm

Thiele-Small Parameters

Resonant Frequency (fs) 73 Hz
Impedance (Re) 6.5 ohms
Coil Inductance (Le) 1.28mH
Electromagnetic Q (Qes) 1.24
Mechanical Q (Qms) 7.34
Total Q (Qts) 1.06
Compliance Equiv. Vol. (Vas) 93.4 Liters/3.3cu. ft.
Voice Coil Overhang (Xmax) 1.0mm
Surface Area of Cone (Sd) .07547 m2
Efficiency (Half Space) % 2.84%
Pe Maximum (Watts) 100

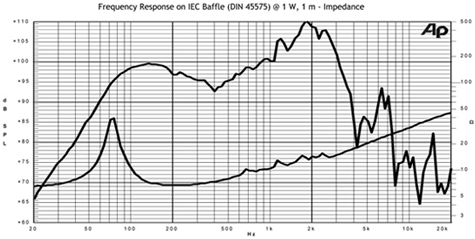

Frequency Response

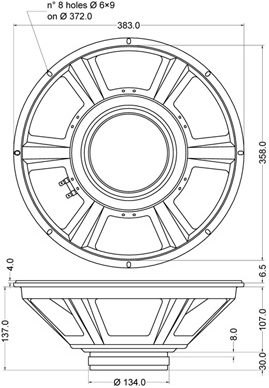

Mounting Dimension
