JENSEN 10" BLACKBIRD - 'JET SERIES' ALNICO GUITAR SPEAKER

Item Price: $235.95

Jensen Blackbird 10

Blackbird 10-8  -  8 ohm version

Blackbird 10-16  -  16 ohm version

SPEAKER MODEL

NEW JET 10" BLACKBIRD

Specifications

Nominal Basket Diameter

10" / 254mm

Impedance

8 / 16 ohms

Rated Power

100 Watts

Musical Power 200 Watts

Frequency Response

70Hz -6.5kHz

Sensitivity (1W/1m)

97 dB SPL

Voice Coil Diameter

2" / 50mm

Magnet Assembly Weight 29 oz.
Net Weight 6.9 lbs. / 3.14 kg.

Speaker Materials

Magnet Alnico
Voice Coil Winding Aluminum
Voice Coil Former Kapton
Cone Paper
Surround Integrated Paper
Dust Dome Non Treated Cloth
Basket Pressed Sheet Steel

Mounting Information

Overall Diameter 10.19" / 259mm
Front Mount Baffle Cutout 9.09" / 231mm
Bolt Circle Diameter 9.65" / 245mm
Overall Depth 5.26" / 133.5mm

Thiele-Small Parameters

Resonant Frequency (fs) 112.1 Hz
Impedance (Re) 5.97 ohms
Coil Inductance (Le) .79mH
Electromagnetic Q (Qes) .85
Mechanical Q (Qms) 14.73
Total Q (Qts) .80
Comp. Equiv. Vol. (Vas) 14.1 Liters/0.50cu. ft.
Max. Displacement (Xmax) 1.0mm
Surface area of Cone (Sd) .330 m2
Efficiency (Half Space) 2.26%
Pe Maximum (Watts) 200
Flux Density 1.0 T

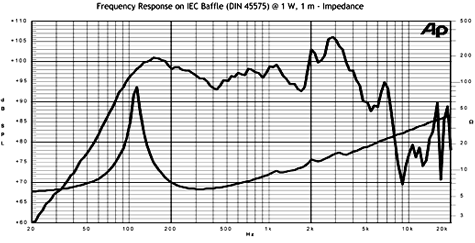

Frequency Response

Jensen Blackbird 10 Frequency Response

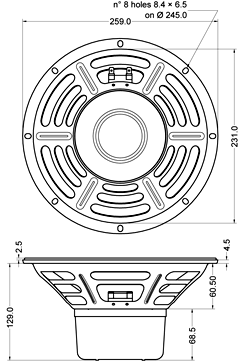

Dimensional Drawing
Jensen Blackbird 10 Mounting
