MOD15-200  -  15" BASS SPEAKER

Item Price: $139.95

MOD15-200-4  -  4 ohm version

MOD15-200-8  -  8 ohm version

MOD15-200-16  -  16 ohm version

SPEAKER MODEL

MOD15-200

SPECIFICATIONS

Nominal Basket Diameter

15" / 385mm

Rated Power

200 Watts

Musical Power 400 Watts

Sensitivity (1W/1m)

97.7dB SPL

Voice Coil Diameter

2" / 50mm

Magnet Assembly Weight 50 oz.
Net Weight 14 lbs.

SPEAKER MATERIALS

Magnet Ferrite
Voice Coil Winding Copper
Voice Coil Former Kapton
Cone Paper
Surround Treated Cloth
Dust Dome Solid Paper
Basket Pressed Sheet Steel

MOUNTING INFORMATION

Overall Diameter 15.08" / 383mm
Front Mount Baffle Cutout 14.37" / 365mm
Overall Depth 5.67" / 144mm

THIELE-SMALL PARAMETERS

Resonant Frequency (fs) 41 Hz
Impedance (Re) 6.5 ohms
Coil Inductance (Le) 1.07mH
Electromagnetic Q (Qes) .48
Mechanical Q (Qms) 18.62
Total Q (Qts) .47
Compliance Equivalent Vol. (Vas) 217.1 Liters/8.55cu. ft.
Voice Coil Overhang (Xmax) 2.0mm
Surface Area of Cone (Sd) .07547 m2
Efficiency (Half Space) % 3.04%
Pe Maximum (Watts) 400

DIMENSIONAL DRAWING

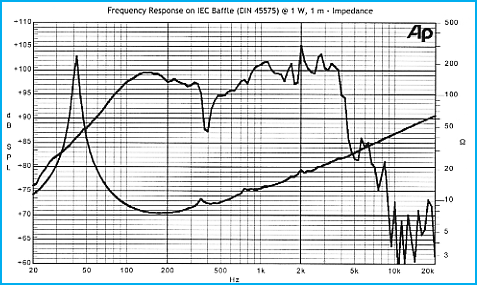

FREQUENCY RESPONSE
