Jensen MOD Series

MOD6-15  -  NEW 6" GUITAR & BASS SPEAKER

Item Price: $21.95
 Jensen MOD6-15

MOD6-15-4  -  4 ohm version

MOD6-15-8  -  8 ohm version

SPEAKER MODEL

MOD6-15

Specifications

Nominal Basket Diameter

6" / 165mm

Impedance

4 or 8 ohms

Rated Power

15 Watts

Musical Power 30 Watts

Sensitivity (1W/1m)

90.9dB SPL

Voice Coil Diameter

.75" / 20mm

Magnet Assembly Weight 5.6 oz.
Net Weight 3.0 lbs.

Speaker Materials

Magnet Ferrite
Voice Coil Winding Copper
Voice Coil Former Epotex
Cone Paper
Surround Foam
Dust Dome Solid Paper
Basket Pressed Sheet Steel

Mounting Information

Overall Diameter 6.53" / 165.8mm
Front Mount Baffle Cutout 5.59" / 142mm
Overall Depth 2.13" / 54mm

Thiele-Small Parameters

Resonant Frequency (fs) 91 Hz
Impedance (Re) 3 ohms
Coil Inductance (Le) .16mH
Electromagnetic Q (Qes) 1.39
Mechanical Q (Qms) 8.06
Total Q (Qts) 1.19
Compliance Equivalent Vol. (Vas) 11.7 Liters/.41cu. ft.
Voice Coil Overhang (Xmax) .5mm
Surface Area of Cone (Sd) .01227 m2
Efficiency (Half Space) % .61%
Pe Maximum (Watts) 30

Mounting Information

Jensen MOD6-15

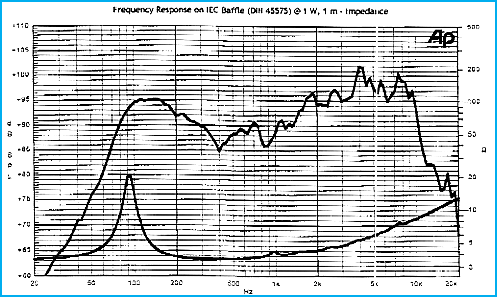

Frequency Response
Jensen MOD6-15 Frequency
