P10R - VINTAGE GUITAR SPEAKER
|
|
|
P10R - VINTAGE GUITAR SPEAKER |
|
|
Item Price: $125.32 |
|
|
P10R-4 - 4 ohm version |
|
P10R-8 - 8 ohm version |
|
|
P10R-16 - 16 ohm version |
|
SPEAKER
MODEL |
JENSEN P10R |
|
Specifications |
|
|
Nominal
Basket Diameter |
10"
/ 259mm |
|
Impedance |
4, 8
or 16 ohms |
|
RMS Power |
25
Watts |
| Program Power | 50 Watts |
|
Frequency
Response |
80Hz
-6kHz |
|
Sensitivity
(1W/1m) |
95dB |
|
Voice
Coil Diameter |
1"
/ 25mm |
| Magnet Assembly Weight | 7 oz. / 200 grams |
| Net Weight | 3.15 lbs. |
|
Speaker Materials |
|
| Magnet | Alnico |
| Voice Coil Winding | Copper |
| Voice Coil Former | Kapton |
| Cone | Paper |
| Surround | Treated Cloth |
| Dust Dome | Felt |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Front Mount Baffle Cutout | 9.1" / 231mm |
| Overall Depth | 117.5mm / 4.63" |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 130 Hz |
| Impedance (Re) | 6.7 ohms |
| Coil Inductance (Le) | .54mH |
| Electromagnetic Q (Qes) | 1.6 |
| Mechanical Q (Qms) | 23.55 |
| Total Q (Qts) | 1.5 |
| Comp. Equiv. Vol. (Vas) | 31.6 Liters/1.12cu. ft. |
| Max. Displacement (Xmax) | .8mm |
| Surface Area of Cone (Sd) | .033 m2 |
| Efficiency (Half Space) % | 1.7% |
| Pe Maximum (Watts) | 50 |
| Displacement Volume (Vd) | 312 cm3 |
| Flux Density | .96 T |

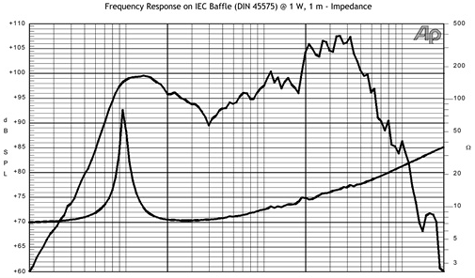

| FREQUENCY RESPONSE | |
 |
|

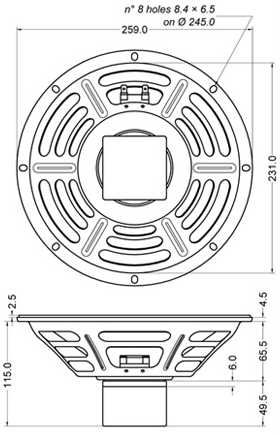

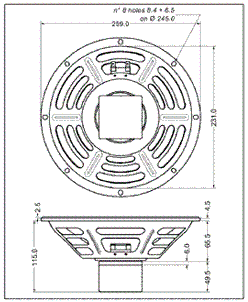

| DIMENSIONAL DRAWING | |
 |
|
