P12Q - 'P SERIES' GUITAR SPEAKER
|
|
|
P12Q - 'P SERIES' GUITAR SPEAKER |
|
|
Item Price: $121.95 |
|
|
P12Q-8 - 8 ohm version |
|
P12Q-16 - 16 ohm version |
|
SPEAKER
MODEL |
P12Q |
|
Specifications |
|
|
Nominal
Basket Diameter |
12"
/ 306mm |
|
Impedance |
8
or 16 ohms |
|
Rated Power |
40
Watts |
| Musical Power | 80 Watts |
|
Sensitivity
(1W/1m) |
96.1dB |
|
Voice
Coil Diameter |
1.26"
/ 32mm |
| Magnet Assembly Weight | 10 oz./ 300 grams |
| Shipping Weight | 5.0lbs |
|
Speaker Materials |
|
| Magnet | AlNiCo |
| Voice Coil Winding | Copper |
| Voice Coil Former | Nomex |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Solid Paper |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Front Mount Baffle Cutout | 10.09"
/ 277mm |
| Overall Depth | 132.1mm / 5.2" |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 84 Hz |
| Impedance
(Re) |
5.6 ohms |
| Coil Inductance (Le) | .58mH |
| Electromagnetic Q (Qes) | 1.6 |
| Mechanical Q (Qms) | 13.5 |
| Total Q (Qts) | 1.41 |
| Comp. Equiv. Vol. (Vas) | 49.7 Liters/1.75cu. ft. |
| Max. Displacement (Xmax) | 1.0mm |
| Surface Area of Cone (Sd) | .4910 m2 |
| Efficiency (Half Space) % | 1.78% |
| Pe Maximum (Watts) | 80 |
| Flux Density | 1.04 T |
|

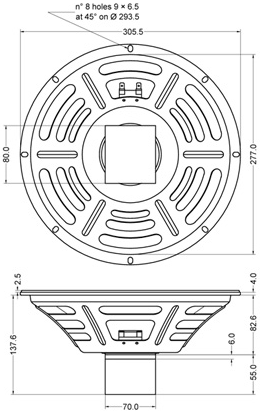

Dimensional Drawing |
|
|
|
|
|

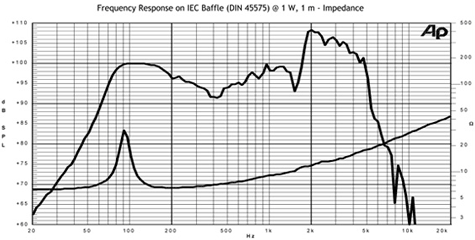

Frequency Response |
|
|
|
|
