Vintage Jensen

P12N - VINTAGE GUITAR SPEAKER

NO BELL COVER

WITH BELL COVER

Item Price: $214.95

Item Price: $255.95

Jensen P12N No Bell

Jensen P12N

P12N-NB-8  -  8 ohms P12N-8  -  8 ohms
P12N-NB-16 - 16 ohms P12N-16  -  16 ohms

SPEAKER MODEL

P12N

Specifications

Nominal Basket Diameter

12" / 307mm

Impedance

8 / 16 ohms

RMS Power

50 Watts

Program Power 100 Watts

Frequency Response

60Hz -8kHz

Sensitivity (1W/1m)

98.4dB SPL

Voice Coil Diameter

1.5" / 25mm

Magnet Assembly Weight 12.5oz./ 355 grams
Net Weight 6.6lbs./ 3kg.

Speaker Materials

Magnet Alnico
Voice Coil Winding Copper
Voice Coil Former Kapton
Cone Paper
Surround Integrated Paper
Dust Dome Solid
Basket Pressed Sheet Steel

Mounting Information

Front Mount Baffle Cutout 10.09" / 277mm
Overall Depth w/ Bell Cover 169.4mm / 6.7"

Thiele-Small Parameters

Resonant Frequency (fs) 90 Hz
Impedance (Re) 6.2 ohms
Coil Inductance (Le) .58mH
Electromagnetic Q (Qes) .82
Mechanical Q (Qms) 5.72
Total Q (Qts) .72
Comp. Equiv. Vol. (Vas) 40.2 Liters/1.42cu. ft.
Max. Displacement (Xmax) 1.0mm
Surface Area of Cone (Sd) .0491 m2
Efficiency (Half Space) % 3.4%
Pe Maximum (Watts) 100
Flux Density .87 T
Frequency Response
s

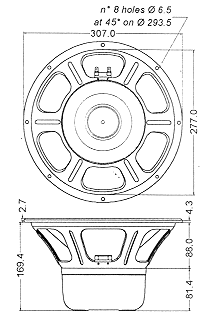

Dimensional Drawing
