P15N - VINTAGE GUITAR SPEAKER

Vintage Jensen Loudspeaker Logo

 Item Price: $242.95

Jensen P15N



Buy a Vintage Jensen P15N-NB-4 Guitar Speaker P15N-4 - 4 ohms

Buy a Vintage Jensen P15N-NB-8 Guitar Speaker P15N-8 - 8 ohms

Buy a Vintage Jensen P15N-NB-16 Guitar Speaker P15N-16 - 16 ohms

Bell cover for P15N Item Price: $34.95

SPEAKER MODEL

P15N

Specifications

Nominal Basket Diameter 15" / 385mm
Impedance 4, 8 or 16 ohms
Rated Power 50 Watts
Musical Power 100 Watts
Frequency Response 50Hz -4kHz
Sensitivity (1W/1m) 96.8dB SPL
Voice Coil Diameter 1.5" / 38mm
Magnet Assembly Weight 12.5 oz./ 355 grams
Net Weight 8.2 lbs.

Speaker Materials

Magnet AlNiCo
Voice Coil Winding Copper
Voice Coil Former Kapton
Cone Paper
Surround Integrated Paper
Dust Dome Solid Paper
Basket Pressed Sheet Steel

Mounting Information

Front Mount Baffle Cutout 14.49" / 368mm
Overall Depth 167.6mm / 6.6"

Thiele-Small Parameters

Resonant Frequency (fs) 77 Hz
Impedance (Re) 6.5 ohms
Coil Inductance (Le) .90mH
Electromagnetic Q (Qes) 1.36
Mechanical Q (Qms) 9.63
Total Q (Qts) 1.18
Comp. Equiv. Vol. (Vas) 82.1 Liters/2.9cu. ft.
Max. Displacement (Xmax) 1.0mm
Surface area of Cone (Sd) .07547 m2
Efficiency (Half Space) % 2.62%
Pe Maximum (Watts) 100
Flux Density 1.26 T

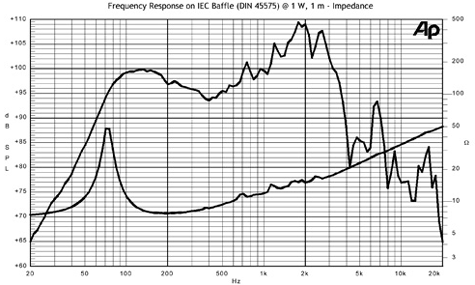

Frequency Response

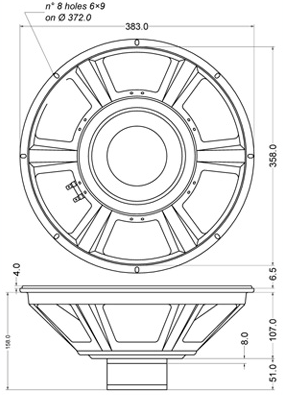

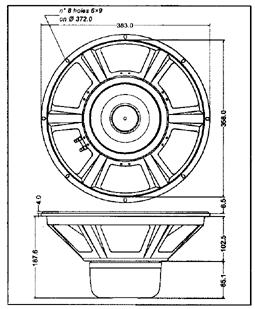

Dimensional Drawing
