KAPPA LITE KL3010LF - 10" WOOFER

THE EMINENCE KAPPALITE KL3010LF DELIVERS A STRONG CLEAN BASS THANKS TO ITS' HAS A HIGH 8.52MM XMAX & HANDLES 900 WATTS PROGRAM!

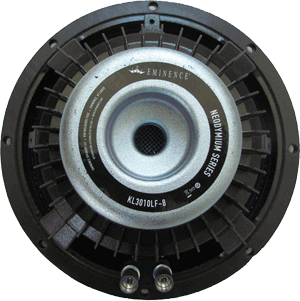

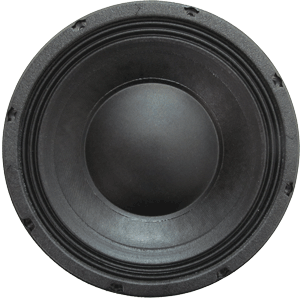

Eminence KL3010LFEminence KL3010LF

IN STOCK

Item Price: $199.99

Free UPS Ground Shipping in the U.S.

WOOFER MODEL

Kappa Lite KL3010LF

SPECIFICATIONS

Nominal Basket Diameter

10" / 254mm

Impedance

8 ohms

RMS Power Rating

450 Watts

Program Power Rating 900 Watts

Frequency Response

42Hz - 1.6kHz

Sensitivity 92dB SPL

Voice Coil Diameter

3" / 76.2mm

Magnet Weight

11 oz.

Rec. Enclosure Volume(Vented) .7-3.0cu. ft./19.82-84.95 Liters

MOUNTING INFORMATION

Overall Diameter 10.25" / 260.35mm
Bolt Circle Diameter 9.73" / 247.14mm
Baffle Cutout Diameter 9.12" / 231.65mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.285" / 7.24mm
Overall Depth 4.875" / 123.83mm
Net Weight 7.1 lbs. / 3.22kg.
Shipping Weight 8.9 lbs. / 4.04kg.
MATERIALS
Cone Paper
Former Material Polyimide
Voice Coil Copper
Magnet Neodymium
Vented Motor Core
Basket Die-Cast Aluminum
Surround Cloth
Dust Cap Treated Paper

THIELE-SMALL PARAMETERS

Resonant Frequency (fs) 44.82 Hz
Impedance (Re) 7.03 ohms
Coil Inductance (Le) .87mH
Electromagnetic Q (Qes) .33
Mechanical Q (Qms) 6.95
Total Q (Qts) .31
Moving Mass (Mms) 53.23 grams
Compliance Suspension (Cms) .24mm/N
Compliance Equivalent Vol. (Vas) 47.33 Liters/1.67cu. ft.
Voice Coil Overhang (Xmax) 8.52mm
Surface Area of Cone (Sd) .03769m2
BL Product (BL) 17.98 T-M
Peak Diaphragm Displacement Volume(Vd) 321.12cc

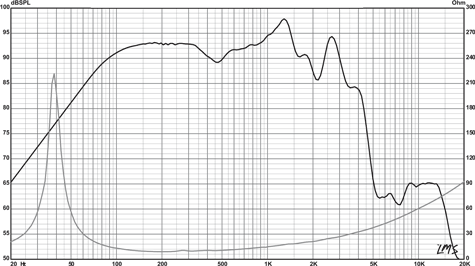

KAPPALITE KL3010LF RESPONSE CURVE

KappaLite KL3010LF
