Genuine Eminence

LEGEND CA1059-8  -  10" BASS GUITAR SPEAKER

THE EMINENCE LEGEND CA1059-8 IS THE 10" BASS SPEAKER REPLACEMENT FOR THE EDEN BASS GUITAR CABINETS!

Eminence Legend CA1059-8Eminence Legend CA1059-8

Free UPS Ground Shipping in the U.S.

LEGEND CA1059-8

8 Ohm Version



Item Price: $129.99

WOOFER MODEL

LEGEND CA1059-8

Specifications

Nominal Basket Diameter 10" / 254mm
Impedance 8 ohms
RMS Power Rating 250 Watts
Program Power Rating 500 Watts
Frequency Response 50Hz - 3.2kHz
Sensitivity (1W/1m) SPL 98.7dB
Voice Coil Diameter 2" / 51mm
Gap Height 0.313" / 7.95mm
Rec. Enclosure Volume(Vented) .67 - 2.78cu. ft. / 18.82 - 70.79 Liters

Mounting Information

Overall Diameter 10.5" / 266.7mm
Flat to Flat Diameter 10.14" / 257.6mm
Bolt Circle Diameter 9.71" / 246.5mm
Baffle Cutout Diameter 9.01" / 228.9mm
No. Of Mounting Holes 4
Mounting Hole Diameter 0.3" / 7.6mm
Overall Depth 4.53" / 115.1mm
Magnet Weight 38 oz.
Net Weight 11.2lbs. / 5.06 kg.
Shipping Weight 12.7lbs. / 5.76 kg.

Materials

Basket Type Die Cast Aluminum
Voice Coil Edgewound Aluminum
Coil Former Material Polyimide
Cone Paper
Surround Cloth
Dust Cap Treated Paper
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 48 Hz
Impedance (Re) 5.53 ohms
Coil Inductance (Le) 0.11mH
Electromagnetic Q (Qes) .28
Mechanical Q (Qms) 3.27
Total Q (Qts) .26
Compliance Equivalent Vol. (Vas) 71.47 Liters/2.52cu. ft.
Voice Coil Overhang (Xmax) 4.72mm
Moving Mass (Mms) 27 Grams
BL Product (BL) 12.54 T-M
Surface Area Of Cone (Sd) .03501m2

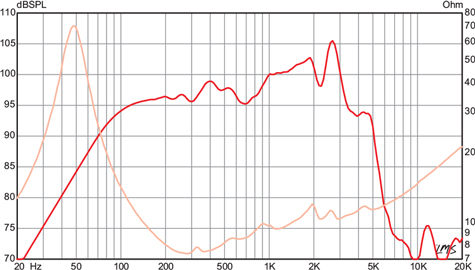

LEGEND CA1059-8 RESPONSE CURVE

Eminence Legend CA1059-8 Frequency
