CLEAN SOUNDING 1" SCREW-ON TYPE HIGH FREQUENCY DRIVER!
BMD440S
Item Price: $79.99
|
P.AUDIO |
|
BMD440S - 1" HIGH FREQUENCY DRIVER |
|
CLEAN SOUNDING 1" SCREW-ON TYPE HIGH FREQUENCY DRIVER! |
|
|
|
BMD440S |
|
Item Price: $79.99
|
|
|
H.F. DRIVER |
BMD440S |
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
60 Watts above 1.5kHz |
|
Sensitivity
(1W/1m) |
106dB |
|
Frequency
Response |
1.5KHz
- 18kHz |
| Recommended Crossover | 2.2 kHz or higher |
| Voice Coil Diameter |
1.75"
/ 44.4mm |
| Mount Type | Screw-on |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Copper Clad Aluminum Wire |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
| Terminal Type | Gold Plated Push |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 705Hz |
|
Impedance |
6.5 ohms |
| BL Product (BL) | 1.5 T-M |
|

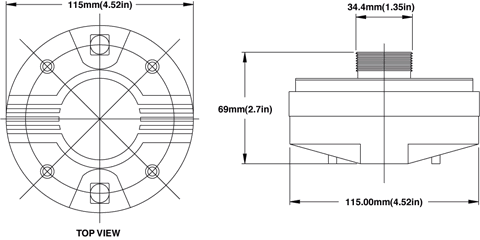

Mounting Information |
|
|
Overall Diameter |
4.52" / 115mm |
| Overall Depth | 2.7" / 69mm |
| Outside Thread Diameter |
1.35"
/ 34.4mm |
|
Net
Weight |
3.9 lb. / 1.77 kg. |

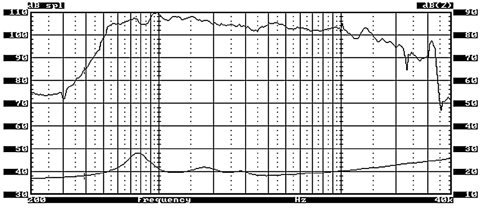

| FREQUENCY RESPONSE | |
 |
|
| CLICK ON IMAGE FOR LARGER VIEW | |
 |
|
