CLEAN SOUNDING 1" SCREW-ON TYPE HIGH FREQUENCY DRIVER!
BMD450S
Item Price: $94.99
Replacement
diaphragm: BMD450S-Dia
$52.00
|
P.AUDIO |
|
BMD450S - 1" HIGH FREQUENCY DRIVER |
|
CLEAN SOUNDING 1" SCREW-ON TYPE HIGH FREQUENCY DRIVER! |
|
|
|
BMD450S |
|
Item Price: $94.99 |
|
|
Replacement
diaphragm: BMD450S-Dia
|
|
|
H.F. DRIVER |
BMD450S |
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
80 Watts above 1.5kHz |
|
Sensitivity
(1W/1m) |
108dB |
|
Frequency
Response |
1.5KHz
- 18kHz |
| Recommended Crossover | 2.2 kHz or higher |
| Voice Coil Diameter |
1.75"
/ 44.4mm |
| Mount Type | Screw-on |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Copper Clad Aluminum Wire |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
| Terminal Type | Gold Plated Push |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 840Hz |
|
Impedance |
6.5 ohms |
| BL Product (BL) | 1.5 T-M |
|
Mounting Information |
|
|
Overall Diameter |
5.28" / 134mm |
|
Overall
Depth |
2.7" / 69mm |
| Outside Thread Diameter |
1.35" / 34.4mm |
|
Net
Weight |
5.98 lb. / 2.72 kg. |
|
CLICK ON IMAGE FOR LARGER VIEW |
|
|
|
|
|

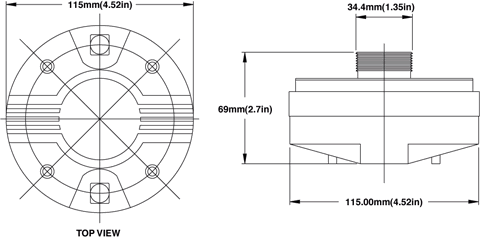

MOUNTING DIMENSIONS |
|
|
|
|
