CLEAN SOUNDING 2" HIGH FREQUENCY DRIVER W/ EXCELLENT POWER HANDLING!
BMD750
Item Price:
$229.95
|
P.AUDIO |
|
BMD750 - 2" HIGH FREQUENCY DRIVER |
|
CLEAN SOUNDING 2" HIGH FREQUENCY DRIVER W/ EXCELLENT POWER HANDLING! |
|
|
|
BMD750 |
|
Item Price: $229.95 |
|
|
H.F. DRIVER |
BMD750 |
|
Specifications |
|
|
Throat Diameter |
2" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
100 Watts above 500Hz |
|
Sensitivity
(1W/1m) |
108dB |
|

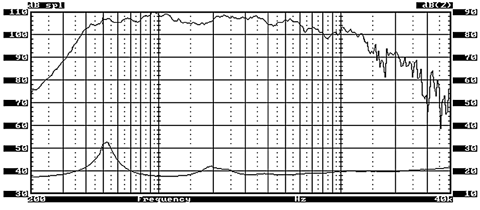

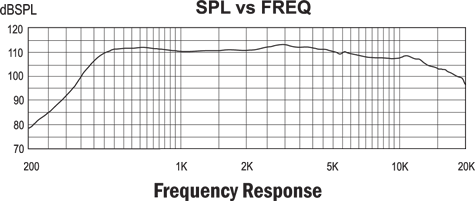

Frequency
Response |
500Hz - 18kHz |
| Recommended Crossover | 800Hz or higher |
| Voice Coil Diameter |
2.84"
/ 72.1mm |
| Mount Type | Bolt-on |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Copper Clad Aluminum Wire |
| Voice Coil Former | Nomex |
| Magnet | Ferrite |
| Terminal Type | Gold Plated Push |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 595Hz |
|
Impedance |
6.5 ohms |
| BL Product (BL) | 1.8 T-M |
|

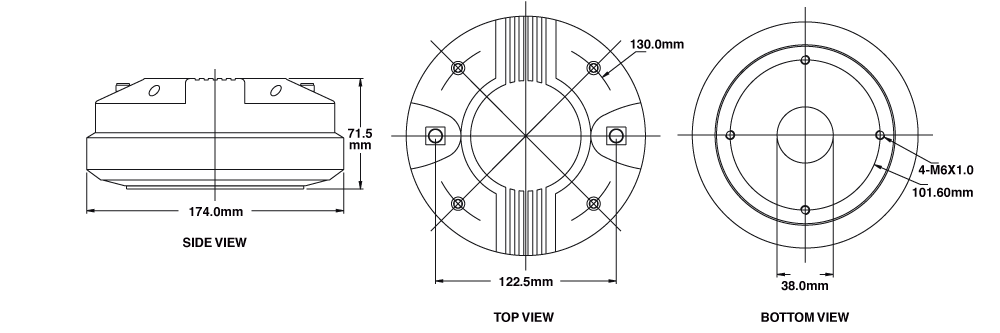

Mounting Information |
|
|
Overall Diameter |
6.85"
/ 174mm |
| Overall Depth |
2.8"
/ 71.5mm |
| Mounting | |
| - (4) M6 threaded holes 90° apart on 4" diameter circle | |
| Net Weight | 10.56 lb. / 4.8 kg. |
|
CLICK ON IMAGE FOR LARGER VIEW |
|
|
|
|
|
CLICK ON IMAGE FOR LARGER VIEW |
|
|
|
|
