P.Audio

PH-2510 - 1" -  100x 80 Horn

Quality 1" screw-on type horn at a nice low price!

PH-2510

Item Price: $27.99

HORN MODEL

PH-2510

Specifications

Throat Size

1" / 25mm

Dispersion

100x 80

Cutoff Frequency 780Hz
Mounting Type Screw-on
Construction ABS + Glass Fiber
Net Weight .48 lb. / .225 kg.

Mounting Information

Overall Width 10.2" / 259mm
Overall Height 4.33" / 110mm
Overall Depth 3.23" / 82mm
Cutout Width 8.66" / 220mm
Cutout Height 2.95" / 75mm
Number of Mounting Holes 8

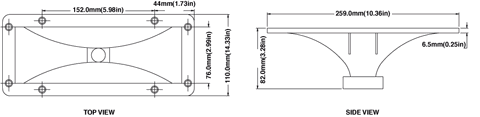

Horn Drawing
