PHT-408 - HIGH FREQUENCY HORN DRIVER

P.Audio PHT-408 High Frequency Driver

PHT-408

Buy a P.Audio PHT-408 High Frequency Driver

Item Price:

$51.95

H.F. DRIVER

PHT408

Specifications

Throat Diameter

1" / 25mm

Impedance

8 ohms

Dispersion 90x 40
RMS Power Rating 30 Watts
Program Power 60 Watts
Sensitivity (1W/1m) 105dB

Frequency Response

2KHz - 15kHz

Voice Coil Diameter 1" / 25.4mm
Mount Type Screw-on
Terminal Type Solder On

Materials

Diaphragm Phenolic Resin
Voice Coil Round Copper Wire
Magnet Ferrite
Horn Material ABS

Thiele-Small Parameters

Resonant Frequency (fs)

1.7kHz

Impedance (Re) 7.2 ohms

Mounting Information

Overall Horn Width 7.6" / 195mm
Overall Depth 6.1" / 155mm
Net Weight 2.2 lb. / 1.0 kg.

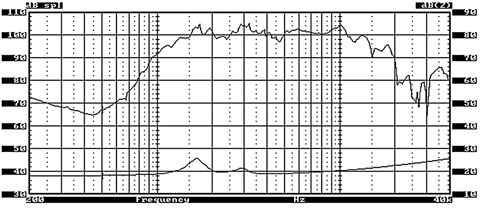

FREQUENCY RESPONSE

P.Audio PHT-408 High Frequency Driver Response Graph

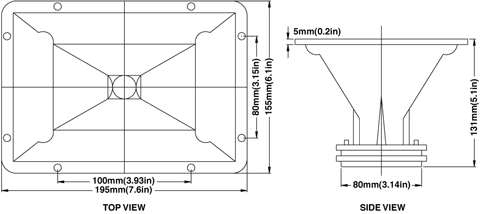

DIMENSIONS
P.Audio PHT-408 High Frequency Driver Dimensions
