PHT-410
Item Price: $51.95
|
P.AUDIO |
|
PHT-410 - HIGH FREQUENCY HORN DRIVER |
|
|
PHT-410 |
|
Item Price: $51.95 |
|
H.F. DRIVER |
PHT410 |
|
Specifications |
|
|
Impedance |
8
ohms |
|
RMS
Power Rating |
20 Watts |
| Program Power | 40 Watts |
|
Sensitivity
(1W/1m) |
105dB |
|
Frequency
Response |
2KHz
- 15kHz |
| Voice Coil Diameter |
1"
/ 25.4mm |
| Mount Type | Screw-on |
| Terminal Type | Solder On |
|
Materials |
|
| Diaphragm | Phenolic Resin |
| Voice Coil | Copper |
| Magnet | Ferrite |
| Horn Material | ABS + FV |
| Mounting Information | |
| Overall Width & Height | 4.33" / 110mm |
| Baffle Cutout Diameter | 3.54" / 90mm |
| Overall Depth | 4.6" / 117.2mm |
|
Net
Weight |
1.98 lb. / .9 kg. |

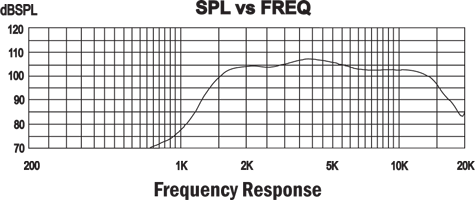

| FREQUENCY RESPONSE | |
 |
|

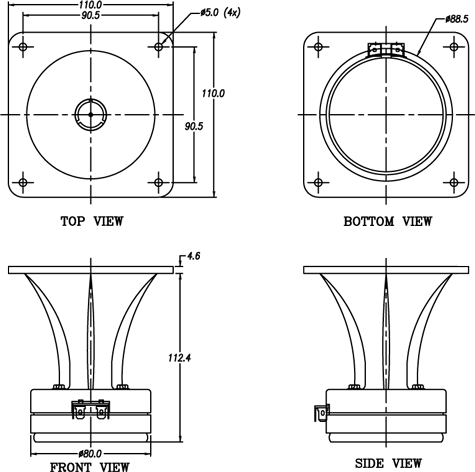

| DIMENSIONS | |
 |
|
US Speaker, LLC
