PEAVEY

12" BLACK WIDOW STEEL GUITAR SPEAKER

4 OHM 12" SPEAKER HAS CLEAN CRISP MIDS WITH A TIGHT MID-BASS SOUND THAT IS DESIGNED FOR STEEL GUITAR!

PEAVEY 1203-4BW SUPER

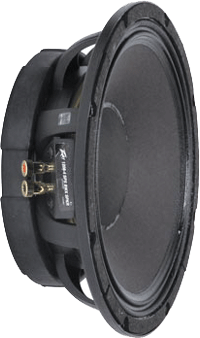

Peavey 1203-4BW Super

NO LONGER AVAILABLE.

Recommend Eminence EPS-12C.

PEAVEY MODEL

1203-4BW SUPER

SPECIFICATIONS

Nominal Basket Diameter

12" / 304.8mm

Impedance

4 Ohms

Sensitivity (SPL) 98.4dB
Frequency Range 60Hz-3.5kHz

Continuous Power (EIA RS-426A)

350 Watts

Program Power

700 Watts

Voice Coil Diameter

4" / 100mm

MOUNTING INFORMATION

Overall Diameter 12.25" / 311.2mm
Bolt Circle Diameter 11.625" / 295.3mm
Baffle Cutout Diameter 10.9375" / 277.8mm
Overall Depth 3.53" / 89.7mm
Overall Weight 16lbs. / 7.3kg.

MATERIALS

Cone High Density Paper
Voice Coil Aluminum Ribbon Wire
Former Fiberglass
Magnet Ferrite

THIELE-SMALL PARAMETERS

Resonant Frequency (fs) 48.8 Hz
Impedance (Re) 5.2 ohms
Coil Inductance (Le) .32
Electromagnetic Q (Qes) .21
Mechanical Q (Qms) 8.235
Total Q (Qts) .204

Compliance Equivalent Vol. (Vas)

82.3 Liters/2.91cu. ft.
Displacement Volume(Vd) 1.4 cu. in.
BL Product(BL) 19.431T-M
Voice Coil Overhang (Xmax) .44mm
Surface Area Of Cone(Sd) .052m2
