RADIAN LT6 - HIGH FREQUENCY PLANAR RIBBON DRIVER

THE RADIAN LT6 PLANAR RIBBON DRIVER DELIVERS A WARM ACCURATE SOUND WITH EXTENDED HIGHS UP TO 30KHZ!

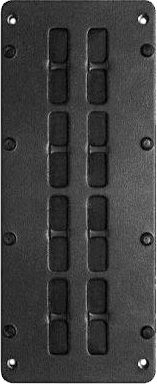

Radian LT6 Planar Ribbon

RADIAN LT6

Radian LT6

Item Price: $136.99

H.F. PLANAR RIBBON DRIVER MODEL  - LT6

Specifications

Impedance 9 ohms
D.C. Resistance 7.3 ohms
AES Power Rating 40 Watts above 1.2kHz
Short Term Power Rating 150 Watts above 1.2kHz
Long Term Power Rating 80 Watts above 1.2kHz
Sensitivity (1W/1m) - No Waveguide 99dB SPL
Sensitivity (1W/1m) - On Waveguide 103dB SPL
Frequency Response 1.2kHz - 30kHz
Recommended Crossover 1.7kHz @ 12dB or 3.5kHz @ 6dB
Horizontal Coverage 100°
Vertical Coverage 40°
Displacement Limit For Voice Coil .5mm

Mounting Information

Overall Height 6.14" / 156mm
Overall Width 2.52" / 64mm
Overall Depth .75" / 19mm
Net Weight 1.2 lb. / .54 kg.

Materials

Diaphragm Kapton
Current Carrying Conductors Aluminum Foil
Front Plate Material Powder Coated Steel
Magnet Neodymium

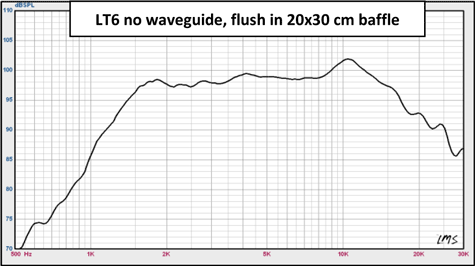

Frequency Response

Radian LT6 Frequency

Dimensional Drawing

Radian LT6 Dimensions
Horizontal Directivity
Radian LT6 Horizontal Directivity

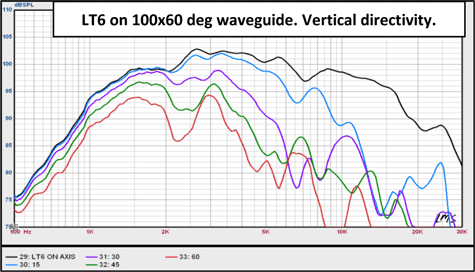

Vertical Directivity

Radian LT6 Vertical Directivity
