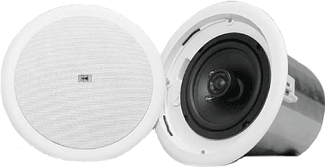

RADIAN RC161 - COAXIAL 2-WAY CEILING SPEAKER
|
|
|
RADIAN RC161 - COAXIAL 2-WAY CEILING SPEAKER |
|
NICE CEILING SPEAKER THAT INCLUDES EVERYTHING FOR A QUICK & EASY INSTALLATION! |
|
|
|
RADIAN RC161 |
|
No Longer Available |
|
|
COAXIAL
MODEL |
|
|
Specifications |
|
|
Impedance |
8 ohms / 8 ohms |
|
RMS
Power Rating |
60 Watts |
| Program Power Rating | 120 Watts |
| Sensitivity (1W/1m) | 89dB SPL |
| Frequency Response | 60Hz - 20kHz |
| Crossover Frequency | 6kHz |
| Nominal Dispersion | 120° |
| 70 Volt Transformer - 30 Watts | Taps - 1.9, 3.7, 7.5, 15, 30 Watts |
| 100 Volt Transformer - 30 Watts | Taps - 3.8, 7.5, 15, 30 Watts |
| Net Weight | 7.72 lbs. / 3.5 kg. |
|
Mounting Information |
|
|
Overall Diameter |
10.24" / 260mm |
| Depth | 8.03" / 203.96mm |
| Baffle Cutout Diameter | 8.78" / 223mm |
|
Materials |
|
| Woofer Cone | Paper |
| Woofer Surround | Butyl Rubber |
| HF Diaphragm | Silk |
| Basket | Steel |
|
Frequency Response |
|
|
|
|
|

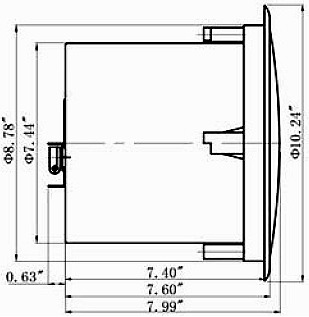

Dimensional Drawing |
|
|
|
|
