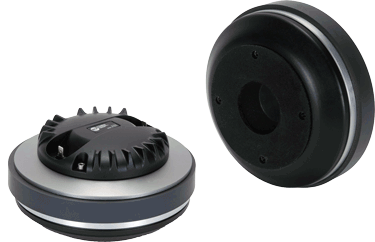

RCF CD850 2.0 - 2" HIGH FREQUENCY DRIVER |
|
|
|
RCF CD850 2.0 - 2" HIGH FREQUENCY DRIVER |
|
THE RCF CD850 2.0 2" HF DRIVER HAS A PURE TITANIUM DIAPHRAGM W/ A POLYESTER SURROUND FOR A MORE SMOOTH SOUND! |
|
|
|
Item Price: $314.95 |
|
H.F.
DRIVER MODEL |
CD850 2.0 |
|
SPECIFICATIONS |
|
|
Horn
Throat Exit Diameter |
2"
/ 50mm |
|
Impedance |
8
Ohms |
|
Frequency
Response |
500Hz
- 20kHz |
|
AES Power |
110
Watts |
| Program Power | 220 Watts Program @ 1.2kHz |
|
Minimum
Cut-off Frequency |
500Hz |
|
Sensitivity
(SPL) |
109dB |
|
Voice
Coil Diameter |
3"
/ 74.4mm |
|
Flux Density |
1.9 Tesla |
| BL Factor | 12.3 T-M |
| Phase Plug | 3 Slot |
|
MATERIALS |
|
|
Diaphragm |
Pure Titanium |
|
Voice
Coil Former |
Kapton |
| Voice Coil | Edgewound Aluminum |
| Voice Coil Demodulation | Copper Ring |
| Suspension | Polyester |
| Suspension Design | Flat |
|
Phase Plug |
Aluminum |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
7.1" / 180 mm |
| Hole Pattern | 4 |
|
Overall
Depth |
3.5" / 88mm |
| Mounting Type - 4 Bolt | 4 x 6 mm on a 4" Diameter |
| Net Weight | 5.5 kg. / 12.1 lbs. |
| Shipping Weight | 6.0 kg. / 13.2 lbs. |

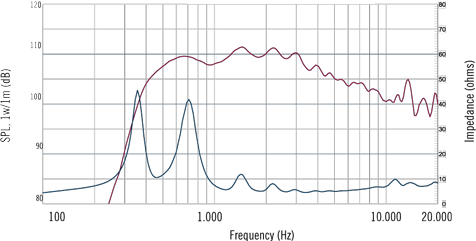

| FREQUENCY RESPONSE CURVE | |
|
Frequency response and electrical impedance curve of the
compression driver mounted on a 90°H x 40°V horn with input signal of 2.83
Volt.
|
|
 |
|
