Genuine Eminence

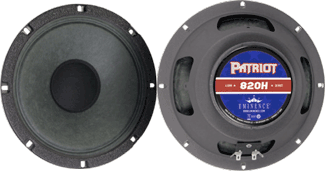

820H - 8" GUITAR SPEAKER
|
|
|
820H - 8" GUITAR SPEAKER |
|
SMOOTH SOUNDING 8" GUITAR SPEAKER WITH LOTS OF THE TONE! |
|
|
|
820H - 4 ohms
Item Price: $109.99 Free UPS Ground Shipping in the U.S. |
| SPEAKER MODEL | 820H |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
8"
/ 203.2mm |
|
Impedance |
4
ohms
|
| RMS Power Rating | 20 Watts |
| Peak Power Rating | 40 Watts |
| Usable Frequency Response |
80Hz
- 4.6kHz |
|
Voice Coil Diameter |
1.0"
/ 25.4mm |
|
Sensitivity
(1W/1m) |
96.1dB |
|
Magnet
Weight |
15
oz. |
| Shipping Weight | 3.9lbs. /1.77kg. |
|
MOUNTING INFORMATION |
|
|
|
8.24" /209.3mm |
| Bolt Circle Diameter |
|
| Baffle Cutout Diameter | 7.13" / 181.1mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.22" / 5.58mm |
| Overall Depth | 3.06" / 77.72mm |
|
MATERIALS |
|
| Basket | Stamped Steel |
| Voice Coil | Copper |
| Coil Former Material | Polyimide |
| Dust Cap | Zurette |
| Cone | Paper |
| Surround | Paper |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 143.55 Hz |
| Impedance (Re) | 3.64 ohms |
| Coil Inductance (Le) | 0.33mH |
| Electromagnetic Q (Qes) | 0.92 |
| Mechanical Q (Qms) | 18.78 |
| Total Q (Qts) | 0.88 |
| Compliance Equiv. Vol. (Vas) | 9.62Liters / .34 cu. ft. |
| BL Product (BL) | 5.74 T-M |
| Voice Coil Overhang (Xmax) | 1.59mm |
| Surface Area of Cone (Sd) | .02309m2 |
|
|
|
