THE B&C 10CL51 IS A GOOD CHOICE FOR A LOW POWER, LIGHTWEIGHT SPEAKER THAT IS AFFORDABLY PRICED THAT HAS TIGHT BASS AND GOOD MIDS!
10CL51
Item Price: $126.48
|
B & C PROFESSIONAL COMPONENTS |
|
10CL51 - 10" BASS / MID-BASS SPEAKER |
|
THE B&C 10CL51 IS A GOOD CHOICE FOR A LOW POWER, LIGHTWEIGHT SPEAKER THAT IS AFFORDABLY PRICED THAT HAS TIGHT BASS AND GOOD MIDS! |
|
|
|
10CL51 |
|
Item Price: $126.48 |
|
|
SPEAKER
MODEL |
10CL51 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
150
Watts |
| Program Power | 300 Watts |
|
Frequency
Response |
60Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
2"
/ 51mm |
| Winding Material | Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .65" / 17mm |
| Magnetic Gap Depth | .31" / 8mm |
| Flux Density | 1.05T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.1" / 257mm |
| Bolt Circle Diameter | 9.7" / 246mm |
| Baffle Cutout Diameter | 9.1" / 232mm |
| Depth | 4.25" / 108mm |
| Flange & Gasket Thickness | .28" / 7mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 2.6 lbs./ 1.2 kg. |
| Shipping Weight | 4 lbs./ 1.8 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
60 Hz |
|
Impedance
(Re) |
5.2 ohms |
| Electrical Factor(Qes) | .44 |
| Mechanical Q (Qms) | 3.8 |
| Total Q (Qts) | .39 |
| Compliance Equiv. Vol. (Vas) | 31 Liters/1.1cu. ft. |
| Voice Coil Overhang (Xmax) | 6.0mm |
| Moving Mass (Mms) | 32 Grams |
| Reference Efficiency | 1.55% |
| BL Factor | 12.0 T-M |
| Surface Area of Cone (Sd)m2 | 0.032m2 |
| Coil Inductance (Le) | .8mH |
|

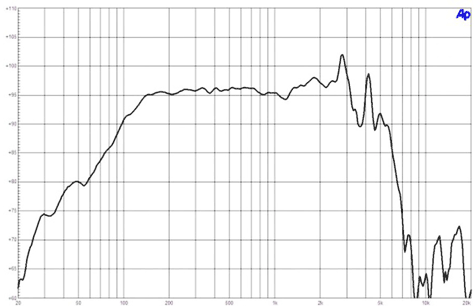

FREQUENCY RESPONSE GRAPH |
|
|
|
|
|

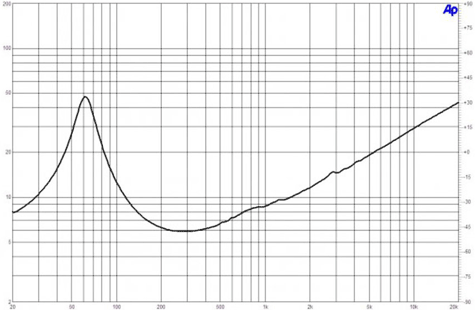

IMPEDANCE CURVE |
|
|
|
|

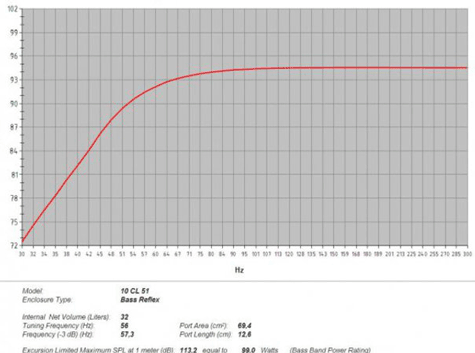

| PREDICTED FREQUENCY RESPONSE | |
|
|
|
