THE B&C 10CLA64 FEATURES A 2.5" VOICE COIL, LIGHTWEIGHT MAGNET & HIGH POWER HANDLING OF 250 WATTS RMS!
10CLA64
Item Price: $159.30
|
B & C PROFESSIONAL COMPONENTS |
|

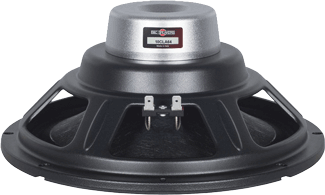

10CLA64 - 10" MID-BASS SPEAKER |
|
THE B&C 10CLA64 FEATURES A 2.5" VOICE COIL, LIGHTWEIGHT MAGNET & HIGH POWER HANDLING OF 250 WATTS RMS! |
|
|
|
10CLA64 |
|
Item Price: $159.30 |
|
|
SPEAKER
MODEL |
10CLA64 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
150
Watts |
| Program Power | 300 Watts |
|
Frequency
Response |
75Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
2.5"
/ 64mm |
| Winding Depth | .55" / 14mm |
| Magnetic Gap Depth | .31" / 8mm |
| Flux Density | 1.15T |
|
MATERIALS |
|
| Basket | Steel |
| Cone | Waterproof Paper |
| Cone Shape | Exponential |
| Surround Shape | Double Roll |
| Voice Coil | Aluminum |
| Dust Cap | Inverted |
| Spider | Single |
| Former Material | Glass Fibre |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.12" / 257mm |
| Bolt Circle Diameter | 9.65" / 245mm |
| Baffle Cutout Diameter | 9.13" / 232mm |
| Depth | 4.39" / 111mm |
| Flange & Gasket Thickness | .35" / 9mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 4.08 lbs./ 1.85 kg. |
| Shipping Weight | 5.4 lbs./ 2.45 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
74 Hz |
|
Impedance
(Re) |
5.5 ohms |
| Electrical Factor(Qes) | .45 |
| Mechanical Q (Qms) | 6.8 |
| Total Q (Qts) | .42 |
| Compliance Equiv. Vol. (Vas) | 18.5 Liters/.65cu. ft. |
| Voice Coil Overhang (Xmax) | 5.0mm |
| Moving Mass (Mms) | 36 Grams |
| Reference Efficiency | 1.65% |
| BL Factor | 14.5 T-M |
| Surface Area of Cone (Sd)m2 | 0.032m2 |
| Coil Inductance (Le) | .9mH |
|

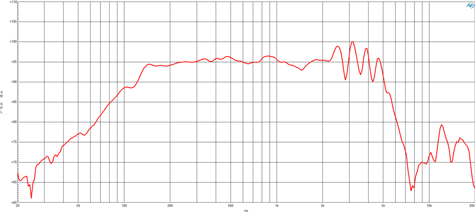

FREQUENCY RESPONSE GRAPH |
|
|
|
|
|

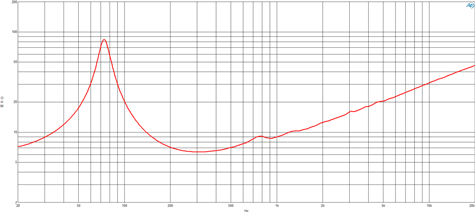

IMPEDANCE CURVE |
|
|
|
|
| PREDICTED FREQUENCY RESPONSE | |
|
|
|
