THIS B&C 10PS26 HIGH QUALITY 10" SPEAKER DELIVERS STRONG TIGHT BASS WITH SMOOTH MIDS!
10PS26
Item Price: $213.19
|
B & C PROFESSIONAL COMPONENTS |
|
10PS26 - 10" MID-BASS SSPEAKER |
|
THIS B&C 10PS26 HIGH QUALITY 10" SPEAKER DELIVERS STRONG TIGHT BASS WITH SMOOTH MIDS! |
|
|
|
10PS26 |
|
Item Price: $213.19 |
|
|
SPEAKER
MODEL |
10PS26 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
350
Watts |
| Program Power | 700 Watts |
|
Frequency
Response |
55Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
3"
/ 76mm |
| Winding Material | Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .71" / 18mm |
| Magnetic Gap Depth | .4" / 10mm |
| Flux Density | .9T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.2" / 261mm |
| Bolt Circle Diameter | 9.6" / 245mm |
| Baffle Cutout Diameter | 8.8" / 230mm |
| Depth | 4.9" / 124mm |
| Flange & Gasket Thickness | .67" / 17mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 13.2 lbs./ 6 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
54 Hz |
|
Impedance
(Re) |
5.8 ohms |
| Electrical Factor(Qes) | .33 |
| Mechanical Q (Qms) | 2.9 |
| Total Q (Qts) | .29 |
| Compliance Equiv. Vol. (Vas) | 36.82 Liters/1.3cu. ft. |
| Voice Coil Overhang (Xmax) | 5.5mm |
| Reference Efficiency | 1.8% |
| BL Factor | 14.1 T-M |
| Coil Inductance (Le) | 1.2mH |
| FREQUENCY RESPONSE | |
 |
|

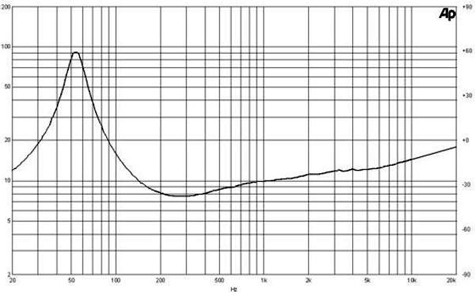

| IMPEDANCE CURVE | |
 |
|
