THE B&C 10FW64 HAS STRONG TIGHT BASS WITH DETAILED SMOOTH MIDRANGE!
10FW64
Item Price: $184.71
|
B & C PROFESSIONAL COMPONENTS |
|
10FW64 - 10" MID-BASS SPEAKER |
|
THE B&C 10FW64 HAS STRONG TIGHT BASS WITH DETAILED SMOOTH MIDRANGE! |
|
|
|
10FW64 |
|
Item Price: $184.71 |
|
|
SPEAKER
MODEL |
10FW64 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
250
Watts |
| Program Power | 500 Watts |
|
Frequency
Response |
65Hz
- 3.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
2.5"
/ 64mm |
| Winding Material | Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .55" / 14mm |
| Magnetic Gap Depth | .3125" / 8mm |
| Flux Density | 1.25T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.3" / 261mm |
| Bolt Circle Diameter | 9.6" / 245mm |
| Baffle Cutout Diameter | 8.8" / 230mm |
| Depth | 4.6" / 116mm |
| Flange & Gasket Thickness | .5" / 13mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 13 lbs./ 5.9 kg. |
| Shipping Weight | 14.3 lbs./ 6.5 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
63 Hz |
|
Impedance
(Re) |
5.0 ohms |
| Electrical Factor(Qes) | .25 |
| Mechanical Q (Qms) | 3.4 |
| Total Q (Qts) | .23 |
| Compliance Equiv. Vol. (Vas) | 27 Liters/.95cu. ft. |
| Voice Coil Overhang (Xmax) | 5.0mm |
| Moving Mass (Mms) | 34 Grams |
| Reference Efficiency | 2.6% |
| BL Factor | 16.4 T-M |
| Coil Inductance (Le) | .9mH |
|

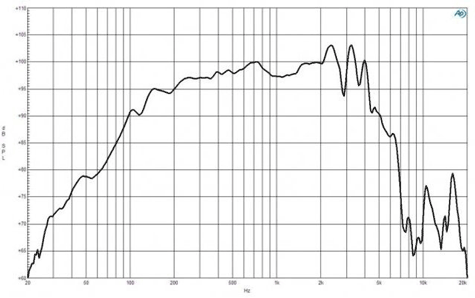

FREQUENCY RESPONSE GRAPH |
|
|
|
|
|

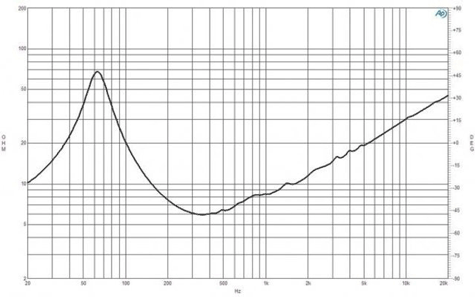

IMPEDANCE CURVE |
|
|
|
|
