THE B&C 10MBX64 MID-BASS SPEAKER HAS A HIGH SPL OF 99DB, HANDLES 350 WATTS RMS, HAS A WATERPROOF CONE & WEIGHS ONLY 7.05LBS! |
|
|
|
10MBX64 |
|
Item Price: $231.90 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

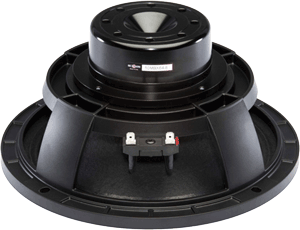

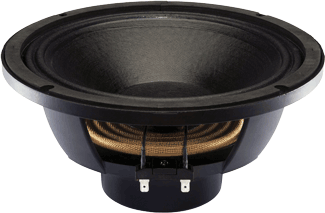

10MBX64 - 10" NEODYMIUM MID-BASS SPEAKER |
|
THE B&C 10MBX64 MID-BASS SPEAKER HAS A HIGH SPL OF 99DB, HANDLES 350 WATTS RMS, HAS A WATERPROOF CONE & WEIGHS ONLY 7.05LBS! |
|
|
|
10MBX64 |
|
Item Price: $231.90 |
|
|
SPEAKER
MODEL |
10MBX64 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
or 16
ohms |
|
RMS
Power Rating |
350 Watts |
| Program Power | 700 Watts |
|
Frequency
Response |
65Hz
- 6.0kHz |
|
Sensitivity
(1W/1m) |
99dB |
|
Voice
Coil Diameter |
2.5"
/ 64mm |
| Winding Material | Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .51" / 13mm |
| Magnetic Gap Depth | .31" / 8mm |
| Flux Density | 1.25T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.28" / 261mm |
| Bolt Circle Diameter | 9.65" / 245mm |
| Baffle Cutout Diameter | 9.06" / 230mm |
| Depth | 4.92" / 125mm |
| Flange & Gasket Thickness | .55" / 14mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 7.05 lbs./ 3.2 kg. |
| Shipping Weight | 8.38 lbs./ 3.8 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Paper |
| Cone Shape | Radial |
| Surround Shape | Double Roll |
| Demodulation Ring | Aluminum |
| Voice Coil | Inside/Outside Copper |
| Magnet | Neodymium |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
65 Hz |
|
Impedance
(Re) |
5.4 ohms |
| Electrical Factor(Qes) | .28 |
| Mechanical Q (Qms) | 4.0 |
| Total Q (Qts) | .26 |
| Compliance Equiv. Vol. (Vas) | 26 Liters/.92cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0346m2 |
| Voice Coil Overhang (Xmax) | 4.5mm |
| Reference Efficiency | 3.1% |
| Diaphragm Mass (Mms) | 33 Grams |
| BL Factor | 17.1 T-M |
| Coil Inductance (Le) | .44mH |

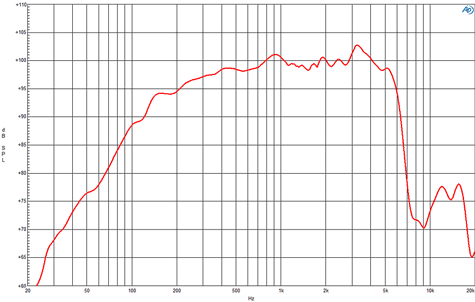

| FREQUENCY RESPONSE | |
 |
|

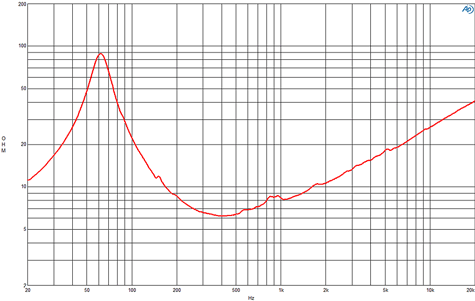

| IMPEDANCE CURVE | |
 |
|
