B&C 10NDL88 MID-BASS SPEAKER HANDLES 500 WATTS RMS, HAS A WATERPROOF CONE WITH 8.1MM XMAX! |
|
|
|
10NDL88 |
|
Item Price: $299.76 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

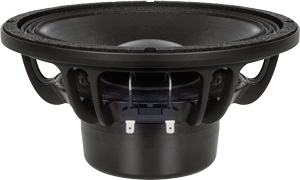

10NDL88 - 10" NEODYMIUM MID-BASS SPEAKER |
|
B&C 10NDL88 MID-BASS SPEAKER HANDLES 500 WATTS RMS, HAS A WATERPROOF CONE WITH 8.1MM XMAX! |
|
|
|
10NDL88 |
|
Item Price: $299.76 |
|
|
SPEAKER
MODEL |
10NDL88 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
500 Watts |
| Program Power | 1,000 Watts |
|
Frequency
Response |
61Hz
- 2.5kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
3.5
/ 88mm |
| Winding Material | Copper Clad Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .85" / 21.7mm |
| Magnetic Gap Depth | .43" / 11mm |
| Flux Density | 1.05T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.28" / 261mm |
| Bolt Circle Diameter | 9.65" / 245mm |
| Baffle Cutout Diameter | 9.06" / 230mm |
| Depth | 5.04" / 128mm |
| Flange & Gasket Thickness | .59" / 15mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 10.14 lbs./ 4.6 kg. |
| Shipping Weight | 11.46 lbs./ 5.2 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Paper |
| Cone Shape | Curvilinear |
| Surround Shape | Triple Roll |
| Demodulation Ring | Aluminum |
| Pole Design | T-Pole |
| Voice Coil | Aluminum Wire |
| Magnet | Neodymium |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
61 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor(Qes) | .26 |
| Mechanical Q (Qms) | 7.3 |
| Total Q (Qts) | .25 |
| Compliance Equiv. Vol. (Vas) | 18.4 Liters/.65cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0320m2 |
| Voice Coil Overhang (Xmax) | 8.1mm |
| Reference Efficiency | 1.59% |
| Diaphragm Mass (Mms) | 53.5 Grams |
| BL Factor | 20 T-M |
| Coil Inductance (Le) | 1.18mH |
| FREQUENCY RESPONSE | |
 |
|

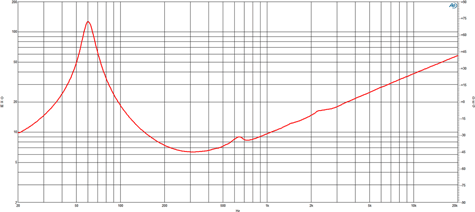

| IMPEDANCE CURVE | |
 |
|
