THE B&C 10NW76 MID-BASS SPEAKER HANDLES 400 WATTS RMS, HAS A WATERPROOF CONE & WEIGHS ONLY 8.38 LBS! |
|
|
|
10NW76 |
|
Item Price: $285.78 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

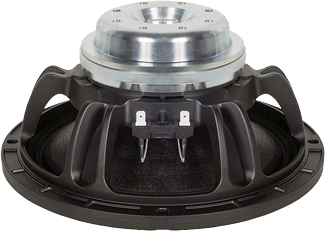

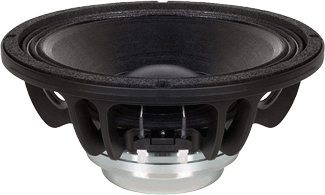

10NW76 - 10" NEODYMIUM MID-BASS SPEAKER |
|
THE B&C 10NW76 MID-BASS SPEAKER HANDLES 400 WATTS RMS, HAS A WATERPROOF CONE & WEIGHS ONLY 8.38 LBS! |
|
|
|
10NW76 |
|
Item Price: $285.78 |
|
|
SPEAKER
MODEL |
10NW76 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
400 Watts |
| Program Power | 800 Watts |
|
Frequency
Response |
65Hz
- 3.5kHz |
|
Sensitivity
(1W/1m) |
96.3dB |
|
Voice
Coil Diameter |
3
/ 76mm |
| Winding Material | Copper Clad Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .73" / 18.5mm |
| Magnetic Gap Depth | .39" / 10mm |
| Flux Density | 1.35T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.28" / 261mm |
| Bolt Circle Diameter | 9.69" / 246mm |
| Baffle Cutout Diameter | 9.17" / 233mm |
| Depth | 4.69" / 119mm |
| Flange & Gasket Thickness | .51" / 13mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 8.38 lbs./ 3.8 kg. |
| Shipping Weight | 9.7 lbs./ 4.4 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Paper |
| Cone Shape | Curvilinear |
| Surround Shape | Triple Roll |
| Demodulation Ring | Aluminum |
| Voice Coil | CCAW |
| Magnet | Neodymium |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
67 Hz |
|
Impedance
(Re) |
5.5 ohms |
| Electrical Factor(Qes) | .27 |
| Mechanical Q (Qms) | 7.8 |
| Total Q (Qts) | .26 |
| Compliance Equiv. Vol. (Vas) | 17.6 Liters/.62cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0320m2 |
| Voice Coil Overhang (Xmax) | 6.8mm |
| Reference Efficiency | 1.85% |
| Diaphragm Mass (Mms) | 47 Grams |
| BL Factor | 20 T-M |
| Coil Inductance (Le) | .38mH |

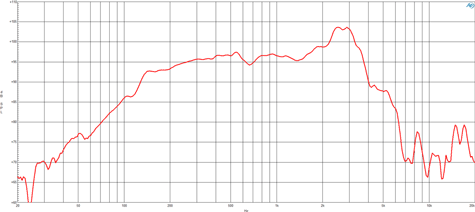

| FREQUENCY RESPONSE | |
 |
|

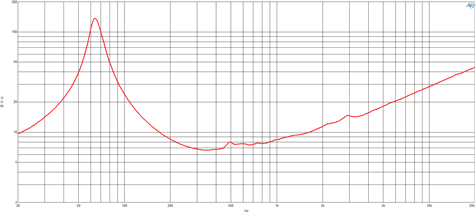

| IMPEDANCE CURVE | |
 |
|
